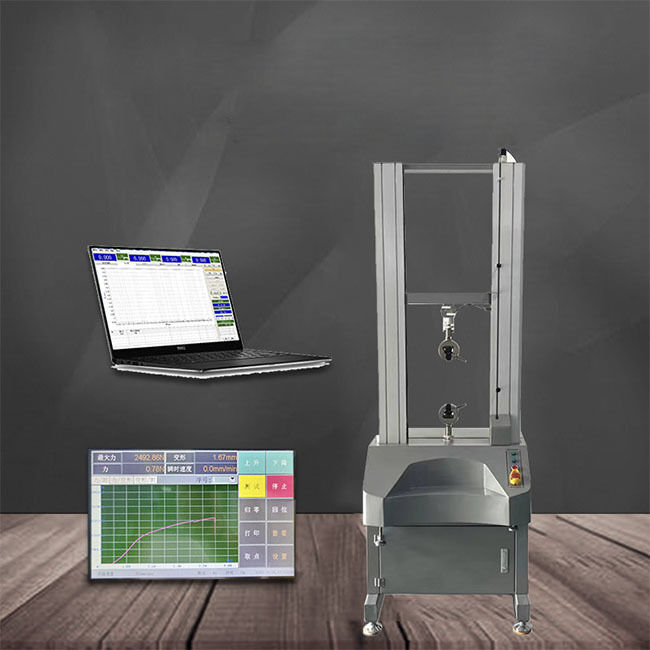

Single Column Tensile Testing Machine 1kN 2kN 5kN
Professional tensile testing equipment designed for evaluating rubber, plastic film, wire, and peel strength materials with precision and reliability.
Product Images
Technical Specifications
| Control Mode |
Digital Display System |
| Model |
YYS-5D |
YYS-10D |
YYS-20D |
YYS-30D |
YYS-50D |
YYS-100D |
| Max Load |
5KN |
10KN |
20KN |
30KN |
50KN |
100KN |
| Load Accuracy |
Grade 1 |
| Test Range |
2-100%FS |
| Tensile/Compression Space |
800mm |
789mm |
750mm |
650mm |
- |
| Test Width |
300mm |
315mm |
400mm |
410mm |
- |
| Deformation Accuracy |
≤±1% |
| Displacement Resolution |
0.01m |
| Crosshead Speed Range |
0.001～500mm/min |
| Overall Dimensions (L*W*H) |
420*300*1500mm |
663*430*1700mm |
770*500*1830mm |
800*500*1950mm |
- |
| Power |
0.3kw |
0.75kw |
1kw |
- |
| Operating Temperature |
0 to +38°C (+32 to +100°F) |
| Humidity Range |
10% to 90% non-condensing |
Additional Options
- Extra wide and/or extra height frames are available
- Power supply system is completely customizable
