High Frequency Metal Quenching Induction Heating Machine (hf-15a)

High Frequency Metal Quenching Induction Heating Machine (hf-15a)

high frequency induction heating machine

metal quenching induction heater

hf-15a induction heating equipment

محل منبع:

چین

نام تجاری:

YUYANG

گواهی:

CE

شماره مدل:

YYUH-60AB

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
حداکثر قدرت نوسان:
60 کیلو وات
قدرت کار:
415 ولت
حداکثر جریان ورودی:
90A
توان خروجی:
60 کیلو وات
فرکانس نوسان:
200-400kHz
سرعت جریان آب خنک کننده:
0.2 مگاپاسکال، 3-30 لیتر در دقیقه
نقطه حفاظت دمای آب:
40 درجه سانتیگراد
اندازه محصول:
620 × 400 × 790 میلی متر
وزن خالص:
72 کیلوگرم
برجسته کردن:

high frequency induction heating machine

,

metal quenching induction heater

,

hf-15a induction heating equipment

شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
1 مجموعه
قیمت
$2000
جزئیات بسته بندی
جعبه تخته سه لا
زمان تحویل
5-10 روز کاری
شرایط پرداخت
T/T، L/C، Western Union
قابلیت ارائه
200 ست در ماه
توضیحات محصول

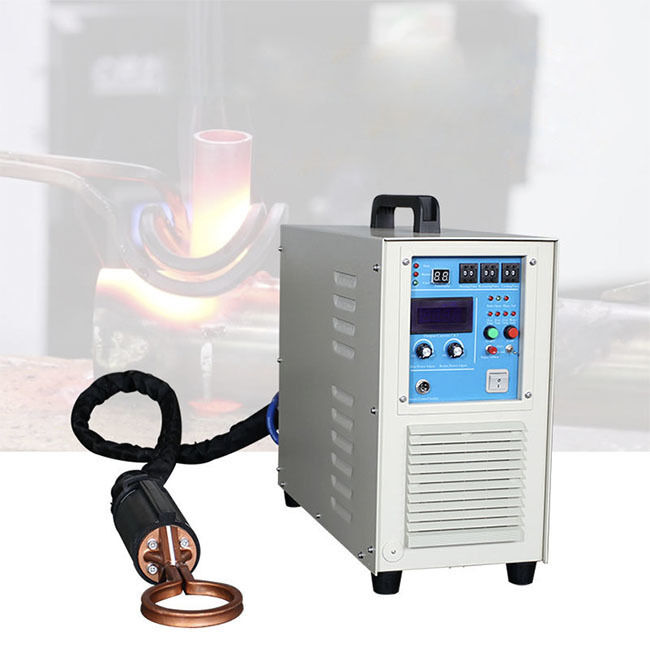

High Frequency Metal Quenching Induction Heating Machine (HF-15A)
The HF-15A High Frequency Metal Quenching Induction Heating Machine represents advanced induction heating technology designed for efficient metal processing applications.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency operation for rapid heating with 20-30% lower power consumption compared to electronic tube induction heating
  • Secure voltage operation for enhanced safety and reliability
  • Manual and automatic regulation with comprehensive protection against over voltage, over current, water shortage, phase failure, and overheating
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications
Advanced Features
Utilizing premium electrical components and innovative techniques, this induction heating machine enables rapid, localized metal heating. The technology penetrates non-metal materials to heat metals to fusion temperatures without direct contact, providing safe, economical, and pollution-free solutions for complex technical challenges.
Operational Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Monolithic shell construction resistant to weak acids and alkalis
  • Advanced amorphous magnetic core material for complex metallic heating applications
  • Wide frequency range suitable for irregular shaped workpieces
  • Rapid heating capability (8-second cycles) ideal for air conditioning and refrigeration industry applications
  • Stable magnetic field output ensuring consistent long-term heating performance
Technical Specifications
Model YYUH-60AB (Three Phase)
Work Power 415V
Maximum Input Current 90A
Output Power 60KW
Fluctuating Frequency 200-400KHZ
Cooling Water Flow Rate 0.2Mpa, 3-30L/min
Water Temperature Protection 40°C

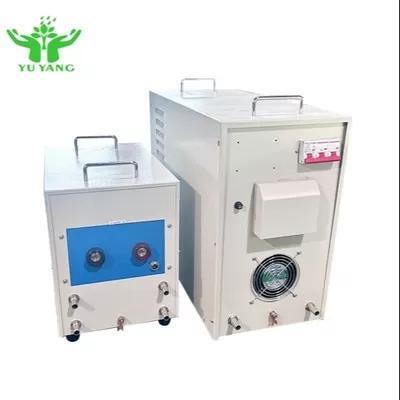

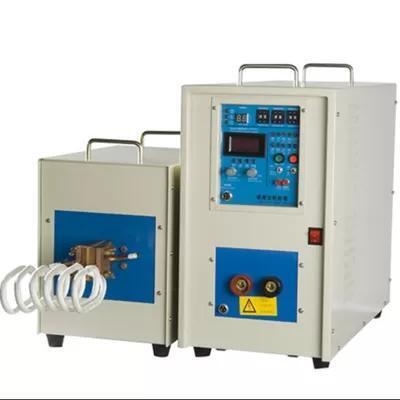

Product Dimensions Main Machine: 620 × 400 × 790mm
Transformer: 560 × 460 × 500mm
Net Weight Main Machine: 72kg
Transformer: 48kg
Application Areas
  • Brazing materials: copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watches welding
  • Electronic industry: motor rotor hot-cooperation, electrode silver and tin soldering
  • Metal implants, bulbs fight electrode
  • Band accessory soldering, golf head, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
