Name: Induction Heating Welding Machines Induction Heating Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: yy-40ab
Price: 2000 USD
Availability: InStock

خونه > محصولات > آزمایش تست الکتریکی >

Induction Heating Welding Machines Induction Heating Machine

induction heating welding machine

electrical test set with induction heating

welding machine with induction heating

محل منبع:

چین

نام تجاری:

YUYANG

گواهی:

شماره مدل:

yy-40ab

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

حداکثر قدرت نوسان:

40 کیلو وات

قدرت کار:

340V-430V

حداکثر جریان ورودی:

41A

توان خروجی:

40 کیلو وات

فرکانس نوسان:

30-80 کیلو هرتز

سرعت جریان آب خنک کننده:

0.08-0.16mpa 7.6L/min

نقطه حفاظت دمای آب:

40 درجه سانتیگراد

اندازه محصول:

620x250x530mm

وزن خالص:

34.5 کیلوگرم

برجسته کردن:

induction heating welding machine

electrical test set with induction heating

welding machine with induction heating

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

$2000

جزئیات بسته بندی

جعبه تخته سه لا

زمان تحویل

5-10 روز کاری

شرایط پرداخت

T/T، L/C، Western Union

قابلیت ارائه

200 ست در ماه

محصولات مرتبط

ویدیو

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

بهترین قیمت رو بدست بیار

ویدیو

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

بهترین قیمت رو بدست بیار

ویدیو

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

بهترین قیمت رو بدست بیار

ویدیو

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

8613265296009

sales13@yuyangtest.com

86-769-26622869

حالا تماس بگیرید

توضیحات محصول

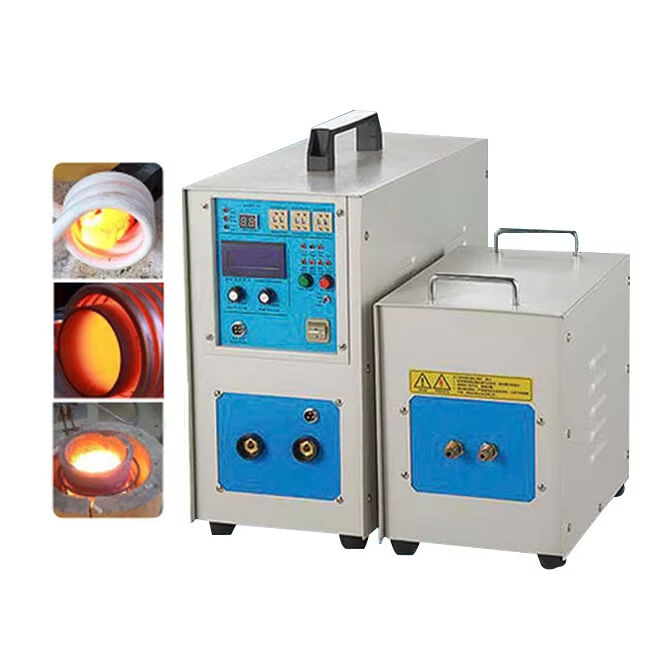

Induction Heating Welding Machines

Advanced induction heating equipment designed for efficient metal processing with superior energy savings and environmental performance.

Key Characteristics

IGBT inverting device with automatic frequency tracking
High-frequency operation with 70-80% energy savings compared to traditional heating methods
Secure voltage operation for enhanced safety
Manual and automatic regulation with comprehensive protection systems
Environmentally friendly operation with no open flame, noise, or pollution
Versatile applications including brazing, welding, forging, and heat treatment

Advanced Features

Utilizes state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metallic materials to heat metals directly without physical contact, providing safe, economical, and pollution-free technical solutions.

Product Advantages

Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
Advanced amorphous magnetic core technology for superior heating of complex metal shapes
High efficiency with rapid 8-second heating cycles and stable magnetic field output
Monolithic shell design resistant to weak acids and alkalis
Ideal for air conditioning, refrigeration, and complex welding applications

Technical Specifications

Model	YY-40AB (Three Phase)
Work Power	340V-430V
Maximum Input Current	41A
Output Power	40KW
Fluctuating Frequency	30-80KHZ
Cooling Water Flow	0.08-0.16Mpa 7.6L/Min
Overheat Protection	40°C
Main Unit Dimensions	620×250×530mm
Transformer Dimensions	480×260×410mm
Main Unit Net Weight	34.5kg
Transformer Net Weight	31.5kg

Applications

Metal brazing: copper, brass, tungsten steel, stainless steel, iron, aluminum
Glasses welding, fishing tool welding, hardware appliances welding
Carbide saw and blade welding, saw-tooth welding
Jewelry and watch manufacturing
Electronic industry: motor rotor hot-cooperation, electrode soldering
Medical implants, bulb electrode manufacturing
Sports equipment: golf heads, band accessories
Communication equipment: copper coaxial cable connector soldering
