Name: High Frequency Metal Quenching Induction Heating Machine (hf-15a)
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYSQ-TC-120KW (سه فاز)
Price: 2000 USD
Availability: InStock

خونه > محصولات > آزمایش تست الکتریکی >

High Frequency Metal Quenching Induction Heating Machine (hf-15a)

high frequency induction heating machine

metal quenching induction heater

hf-15a induction heating equipment

محل منبع:

چین

نام تجاری:

YUYANG

گواهی:

شماره مدل:

YYSQ-TC-120KW (سه فاز)

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

قدرت کار:

340V-430V

حداکثر جریان ورودی:

180A

توان خروجی:

120 کیلووات

فرکانس نوسان:

5-20 کیلوهرتز

جریان خروجی:

400-4500A

سرعت جریان آب خنک کننده:

0.08-0.16 مگاپاسکال 12 لیتر در دقیقه

نقطه حفاظت دمای آب:

50 درجه سانتیگراد

اندازه محصول:

770*550*1510 میلی متر

وزن خالص:

145 کیلوگرم

برجسته کردن:

high frequency induction heating machine

metal quenching induction heater

hf-15a induction heating equipment

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

$2000

جزئیات بسته بندی

جعبه تخته سه لا

زمان تحویل

5-10 روز کاری

شرایط پرداخت

T/T، L/C، Western Union

قابلیت ارائه

200 ست در ماه

محصولات مرتبط

ویدیو

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

بهترین قیمت رو بدست بیار

ویدیو

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

بهترین قیمت رو بدست بیار

ویدیو

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

بهترین قیمت رو بدست بیار

ویدیو

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

8613825729462

sales03@yuyangtest.com

86-769-26622869

حالا تماس بگیرید

توضیحات محصول

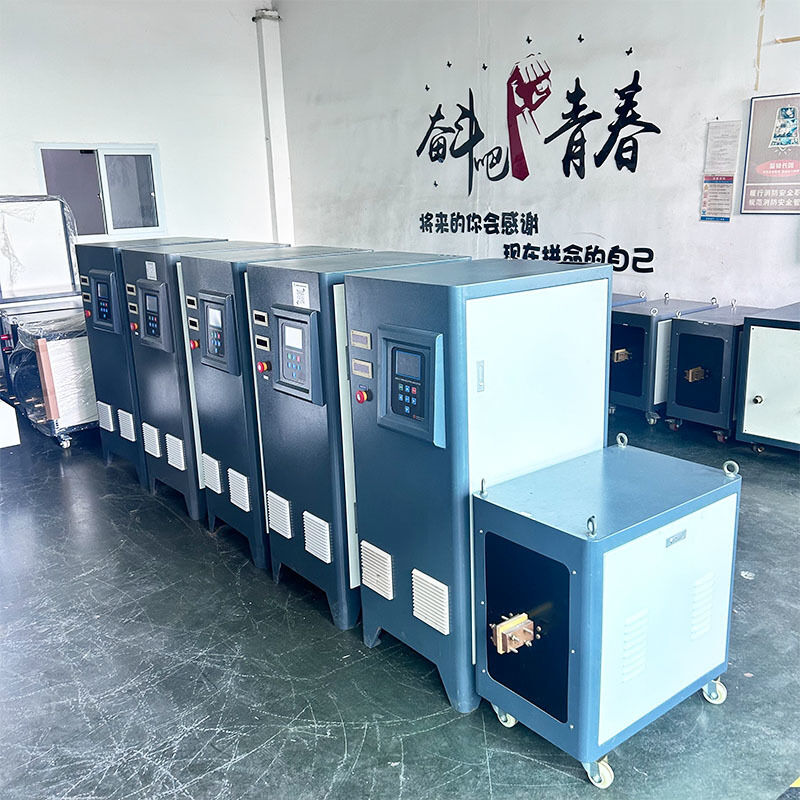

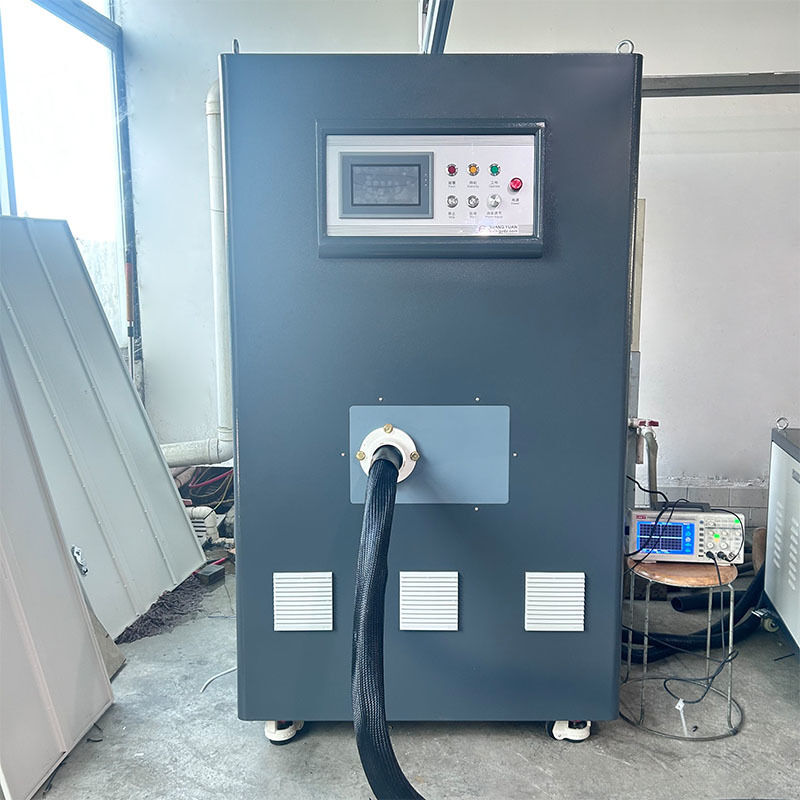

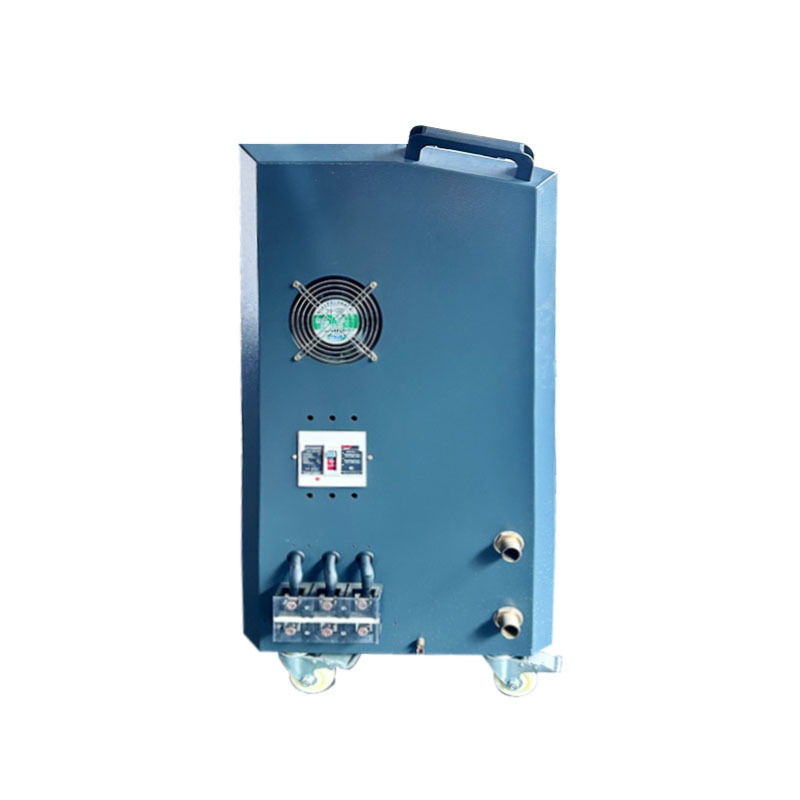

High Frequency Metal Quenching Induction Heating Machine (HF-15A)

This advanced induction heating machine utilizes IGBT inverter technology for efficient metal processing applications including brazing, welding, forging, and quenching operations.

Key Characteristics

IGBT inverter device with automatic frequency tracking
High-frequency operation with rapid heating - consumes only 20-30% of power compared to electronic tube induction heating
Secure voltage operation with enhanced safety features
Manual and automatic regulation with comprehensive protection against over-voltage, over-current, water shortage, phase failure, and overheating
No open flame, noise, or pollution - environmentally friendly and fire-safe operation
Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications

Advanced Features

The High Frequency Induction Heating Machine incorporates advanced electrical components and innovative techniques for rapid, localized metal heating. It can penetrate non-metal materials to heat metals until fusion without direct contact, providing safe, economical, and pollution-free technical solutions.

Operational Advantages

Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
Monolithic shell design with resistance to weak acids and alkalis
Amorphous magnetic core material for complex metallic heating with wider frequency range
Superior heating effects for irregular shaped workpieces
Efficient heating with 8-second speed for air conditioning and refrigerator industry applications
Stable magnetic field output ensures consistent long-term heating performance

Technical Parameters

Model	YYSQ-TC-120KW (Three phase)
Work Power	340V-430V
Maximum Input Current	180A
Output Power	120KW
Fluctuating Frequency	5-20KHZ
Output Current	400-4500A
Cooling Water Flow Rate	0.08-0.16Mpa 12L/Min
Water Temperature Protection Point	50°C
Product Dimensions	770×550×1510mm
Net Weight	145kg

Application Areas

Brazing materials: copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper
Glasses welding, fishing tool welding, hardware appliances welding
Carbide saw and saw-tooth welding, carbide blade welding
Jewelry and watches welding
Electronic industry: motor rotor hot-cooperation, electrode silver and tin soldering
Metal implants, bulbs fight electrode
Band accessory soldering, golf head, pipe welding
Communication equipment soldering, copper coaxial cable connector soldering

Frequently Asked Questions

Who are we?

Based in Guangdong, China, established in 2018. We serve markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Our team consists of 11-50 professionals.

How do we guarantee quality?

Pre-production samples before mass production and final inspection before shipment ensure consistent quality standards.

What products do we offer?

Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, and Wire and Cable Test Machines.

Why choose us?

We are a high-tech enterprise specializing in developing and manufacturing comprehensive testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.

What services do we provide?

Accepted delivery terms: FOB, CFR, CIF, EXW. Payment options: USD, EUR, JPY, AUD, HKD, GBP, CNY. Payment methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash. Languages: English, Chinese.
