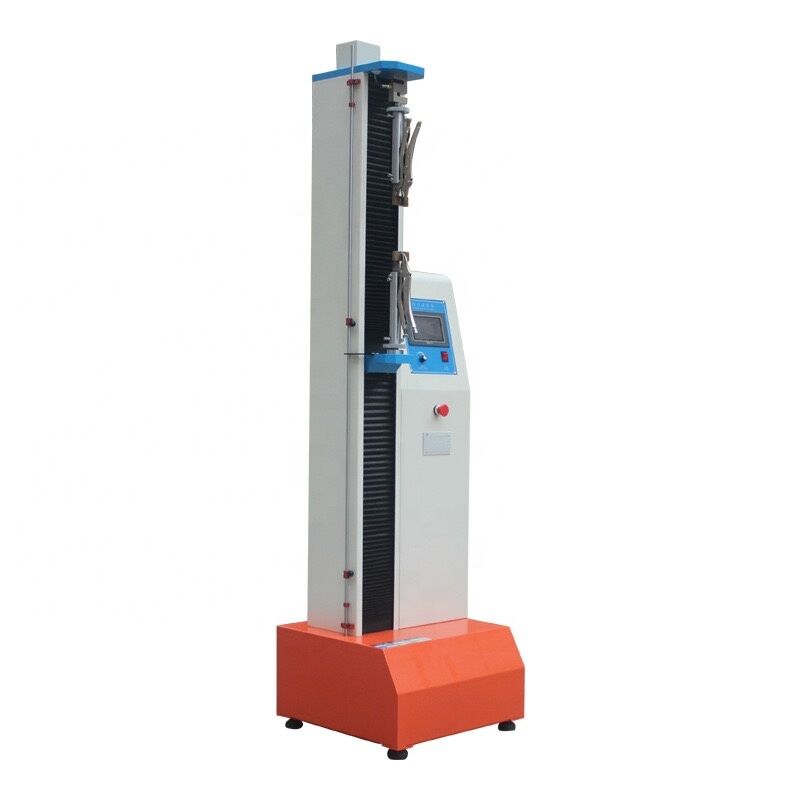

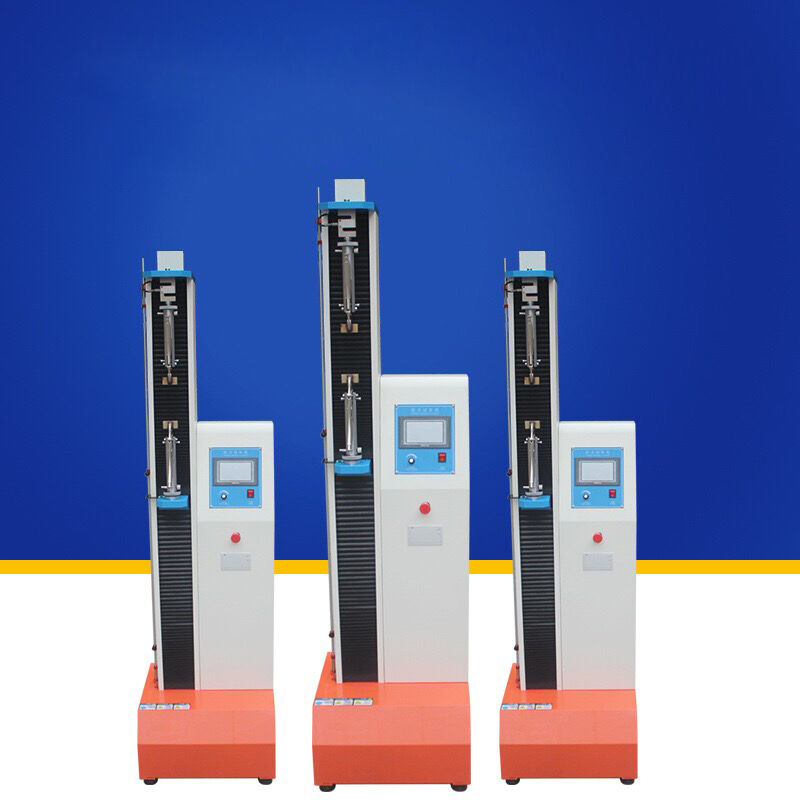

Vertical Manual Tensile Testing Machine
Product Overview
Manual digital universal tensile strength testing machine designed for comprehensive material testing applications across various industries.
Applications & Uses
Suitable for testing tensile strength, peeling strength, deformation rate, breaking force, peeling force, and opening force of materials including:
- Plastic film and composite film
- Adhesives and adhesive tape
- Medical patches and protective film
- Release paper and rubber materials
- Artificial leather and paper fiber products
Testing Standards Compliance
GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ISO 527, ASTM E4, BS 1610, DIN 52121, ISO 7500, EN 10002, ASTM D628, ASTM D638, ASTM D412
Testing Capabilities
Tests physical properties of various materials, finished products, and semi-finished products. With different fixtures, performs multiple test types:
- Tension and compression testing
- Holding and pressure retention
- Bending and tearing tests
- Peeling and adhesion strength
- Shearing performance evaluation
Key Features
- Innovative material testing machine with fully computerized operation
- Integrated panel and aluminum profile plate structure with high precision
- Advanced servo motor drive system for stable operation and accurate speed control
- Computer-based control system with QCTech testing software
- Dedicated testing system supporting comprehensive data processing
Technical Specifications
| Software Parameters |
English operating system, flexible unit conversion (force and length units) |
| Control Modes |
Computer software configures speed, load fracture, running time; dedicated manual operation box for calibration |
| Curve Types |
Load-displacement, Load-time, Displacement-time, Stress-strain, Strain-time, Stress-time |
| Available Test Data |
Maximum/minimum strength, fracture value, yield strength, tensile/compressive strength, modulus of elasticity, elongation, average values |
| Safety Features |
Multiple protections: overload, overcurrent, overvoltage, undervoltage, overspeed, stroke limit |
Ideal For
Factories, technical supervision departments, inspection institutions, research institutes, and universities. Primarily used to test mechanical properties of metals (tension, compression, bending) and automatically calculates parameters according to international standards.
