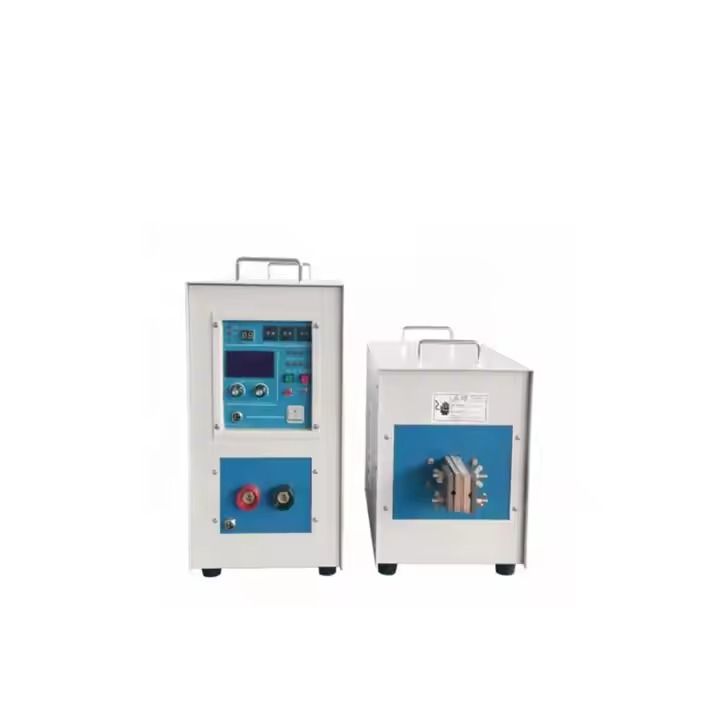

High Frequency Induction Heating Machine 25KW with 200-1200A Output and 0.06-0.12Mpa Cooling for Electrical Test Set

High Frequency Induction Heating Machine 25KW with 200-1200A Output and 0.06-0.12Mpa Cooling for Electrical Test Set

25KW induction heating machine,high frequency induction heater with cooling,electrical test set induction machine

high frequency induction heater with cooling

electrical test set induction machine

محل منبع:

چین

نام تجاری:

YUYANG

گواهی:

CE/CO

شماره مدل:

YYS-25AB

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
مدل:
YY-25AB (سه فاز)
نیروی کار:
340-430 ولت
جریان ورودی:
25A
توان خروجی نوسان:
30-80 کیلوهرتز
جریان خروجی:
200-1200a
سرعت جریان آب خنک کننده:
0.06-0.12 مگاپاسکال 7.5 لیتر در دقیقه
نقطه حفاظت دمای آب:
40 درجه سانتیگراد
اندازه محصول:
اصلی 550x225x480mm؛ ترانسفورماتور: 350x215x380mm
وزن خالص:
وزن اصلی: 21.5 کیلوگرم ترانسفورماتور: 17 کیلوگرم
برجسته کردن:

25KW induction heating machine,high frequency induction heater with cooling,electrical test set induction machine

,

high frequency induction heater with cooling

,

electrical test set induction machine

شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
1 مجموعه
قیمت
1000~3000
جزئیات بسته بندی
جعبه تخته سه لا
زمان تحویل
6-10 روز کاری
شرایط پرداخت
T/T
قابلیت ارائه
20 ست در ماه
توضیحات محصول
High Frequency Induction Heating Machine 25KW
High Frequency Induction Heating Machine 25KW with 200-1200A Output and 0.06-0.12Mpa Cooling for Electrical Test Set. Integrating precise heating and electrical performance testing functions, this equipment is specially designed for metal workpieces and serves manufacturing, research and development, and quality inspection scenarios.
Technical Parameters
Parameter Value
Max Fluctuating Power 25KW
Fluctuating Frequency 30-80KHZ
Heating Current 200-1200A
Input Voltage 3Phase, 380V
Flow Rate of Cooling Water 0.06-0.12Mpa, 7.5L/Min
Water Temperature Protecting Point 40°C
Product Features
  • Equipment adopts IGBT inverter circuit in parallel connection for high load adaptability
  • Product line includes medium-frequency (15KVA~3000KVA) and high-frequency/ultra-high-frequency (3.2KVA~320KVA) equipment
  • Over 60 models available for various metal heating processes
  • Applications include quenching, surface heat treatment, annealing, welding, smelting, and more
Working Principle
  • Fully solid-state IGBT inverter module technology imported from Germany
  • Generates strong alternating magnetic field through induction coil
  • Eddy currents on workpiece surface enable rapid heating and instant temperature rise
Applications
  • Manufacturing: Surface hardening of gears/tooling, brazing of dissimilar metals, thermal assembly of micro-components
  • Quality Inspection: High-temperature testing of electrical terminals/motor windings
  • Research and Development: Thermal conductivity testing, small-scale melting of precious metals
