ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 flooring radiant heat tester,ASTM E 846 flammability test machine,radiant heat flux test apparatus

ASTM E 846 flammability test machine

radiant heat flux test apparatus

محل منبع:

گوانگدونگ، چین

نام تجاری:

YUYANG

گواهی:

CE

شماره مدل:

YYF008

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
دامنه شار گرما:
0-15 کیلووات بر متر مربع
دقت شار حرارتی:
± 0.2 کیلووات بر متر مربع
سرعت اگزوز:
2.5±0.2 متر بر ثانیه
ارتفاع شعله:
60-120 میلی متر قابل تنظیم
سیستم احتراق:
الکترونیک فشار قوی
نرخ جریان گاز:
0.026±0.002 L/S
توان کل:
2 کیلو وات
منبع تغذیه:
AC 220V ، 50Hz
شار انرژی تابشی:
1.1-10.9 کیلووات بر متر مربع
محدوده شار سنج حرارتی:
0-50 کیلووات بر متر مربع
انتشار سطح:
ε=0.05±0.95
ولتاژ عملیاتی:
230 ولت، 10 آمپر
دمای عملیاتی:
10 تا 35 درجه سانتی گراد
زاویه پانل تابشی:
30 درجه
عرضه گاز:
پروپان و کمپرسور هوا
برجسته کردن:

ISO 9239-1 flooring radiant heat tester,ASTM E 846 flammability test machine,radiant heat flux test apparatus

,

ASTM E 846 flammability test machine

,

radiant heat flux test apparatus

شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
1
توضیحات محصول
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus
This professional testing machine measures the critical radiant flux and flame spread characteristics of flooring materials according to international fire safety standards.
Product Overview
The ISO 9239 Radiant Flooring Panel test is the cornerstone of flooring materials reaction to fire tests in the Euroclass system. The apparatus measures flame spread of samples under thermal exposure using a radiant heat ignition source, simulating fire conditions that radiate onto flooring in adjacent rooms or corridors.
This flooring radiant panel test apparatus is also compliant with ASTM E648 and DIN 4102 Part 14 standards.
Compliance Standards
• GB/T 11785 - Flooring combustion performance measurement with radiant heat source
• ISO 9239-1:2002 - Flooring combustion performance determined with radiant heat resource
• ASTM E648 - Critical radiant flux of floor-covering systems using radiant heat
• ASTM E970 - Critical radiant flux of exposed attic floor insulation using radiant heat energy
• NFPA 253 - Critical radiant flux of floor covering systems using radiant heat energy
Key Features
  • Insulated test chamber with calcium silicate insulation board and temperature-resistant observation window
  • Stainless steel sample support assembly on sliding platform for safe and easy sample loading
  • Gas-fuelled radiant panel inclined at 30° directed at horizontally mounted floor covering specimens
  • Radiant energy flux distribution from 10.9 kW/m² to 1.1 kW/m²
  • Dummy calibration specimen with holder and calibrated heat flux meter
  • Measures distance burned until flame-out, converted to equivalent critical radiant flux in kW/m²
  • Heat flux meter range: 0-50 kW/m² with surface emissivity ε=0.95±0.05
  • Integrated smoke measuring system according to DIN 50055
  • Control rack for convenient observation and operation during setup and calibration
  • Automatic ignition of radiant panel with safety cut-out
  • Automatic moving T-type ignition burner
  • Stainless steel hood with smoke measurement ports
Installation Requirements
Parameter Specification
Electrical 230 volts Nominal, 10 Amps
Ambient Temperature Operating range: 10°C to 35°C
Gas Supplies Propane and air compressor
Product Images

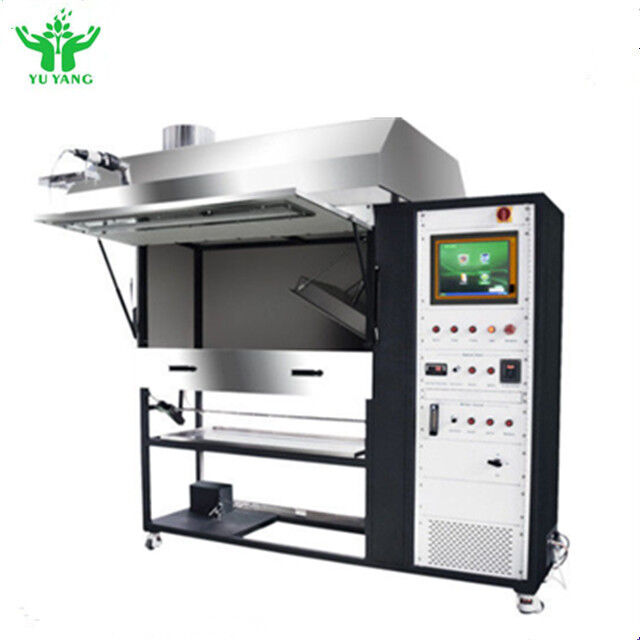

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 0

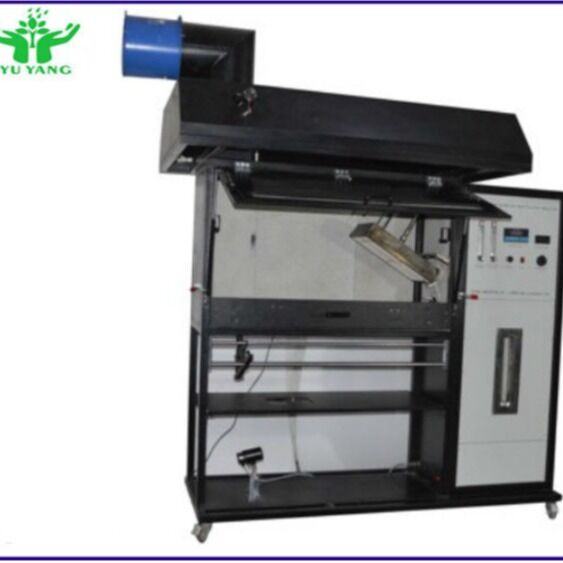

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 1

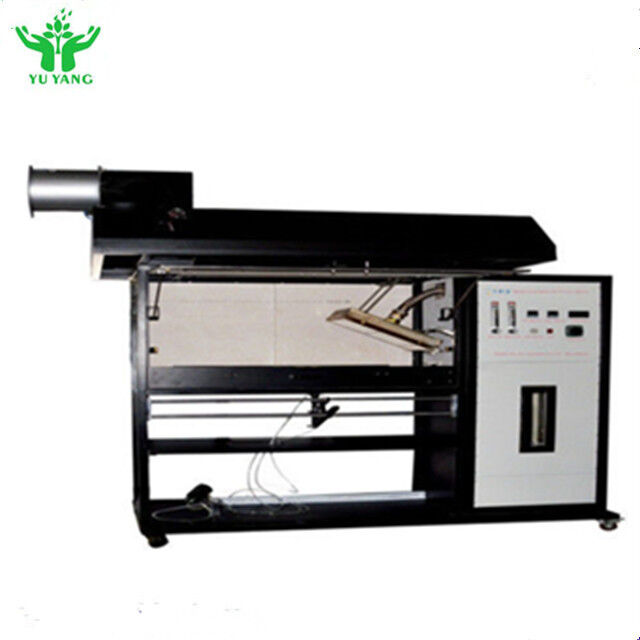

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 2

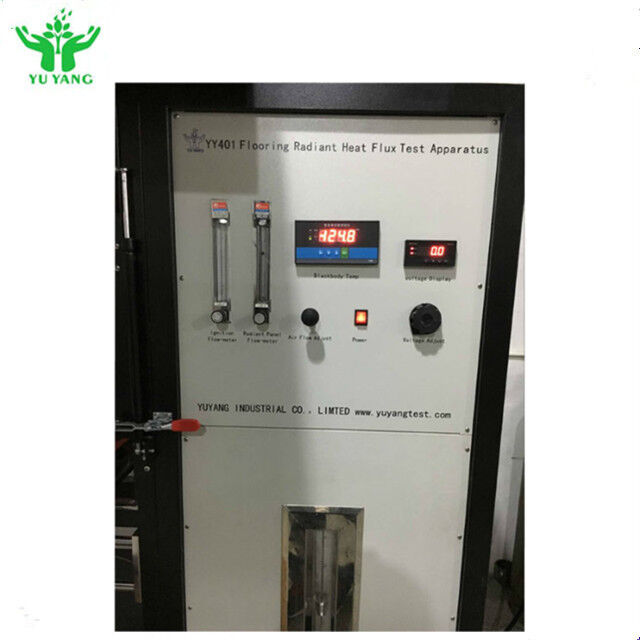

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 3

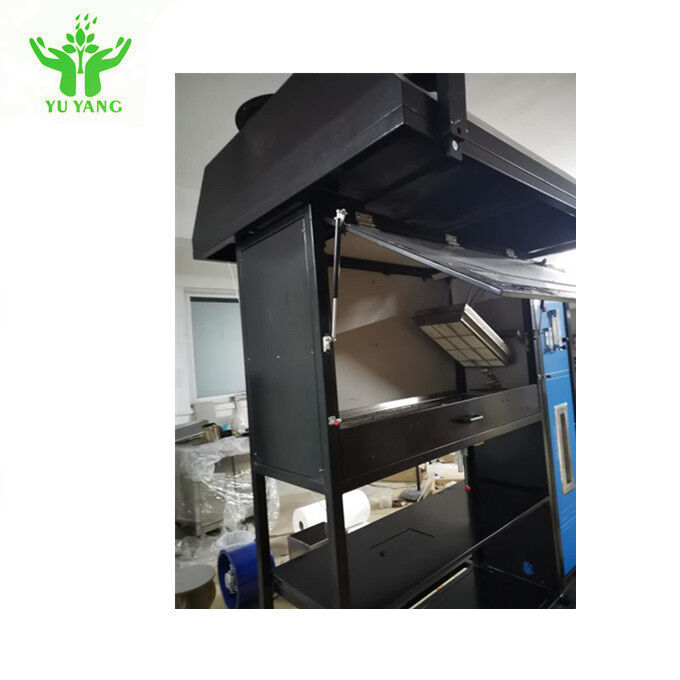

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 4

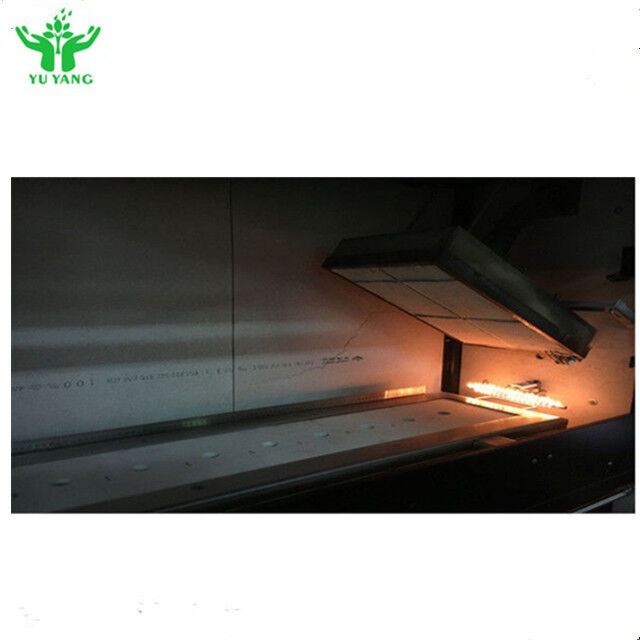

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 5
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 6
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 7
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 8
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 9
