توضیحات محصول

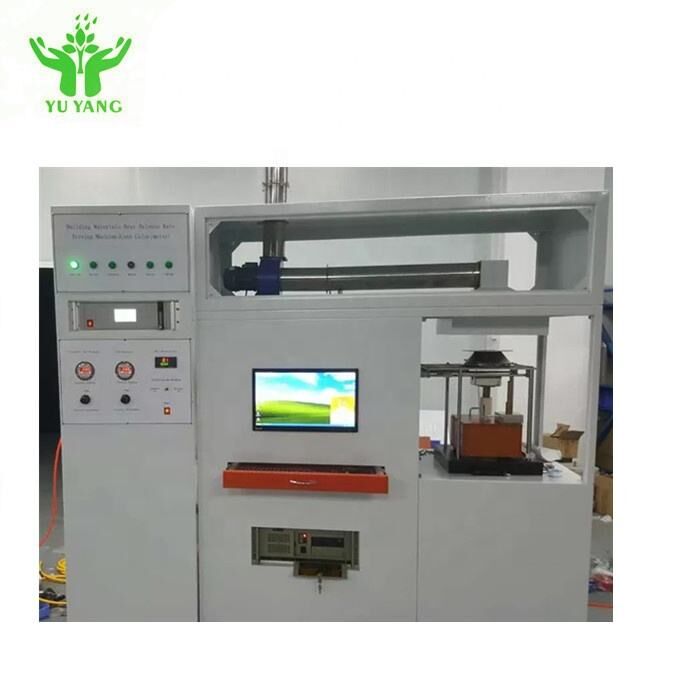

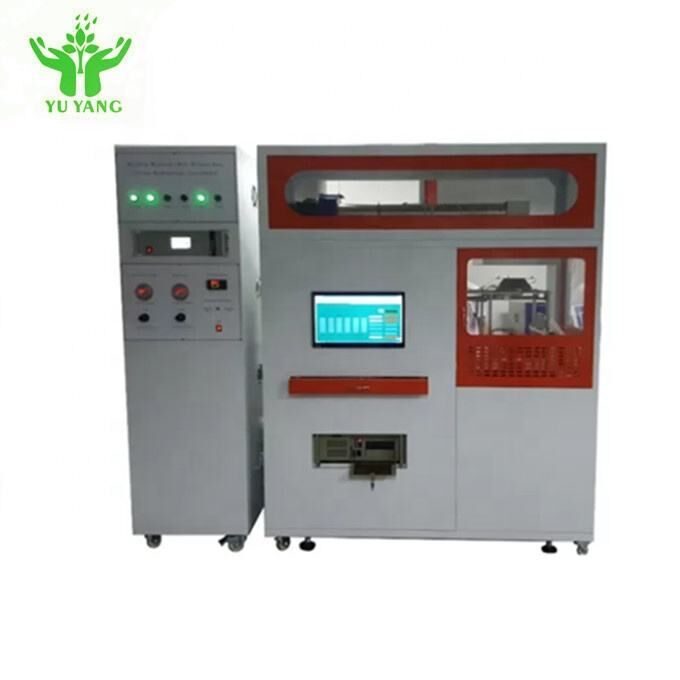

ISO5660 Cone Calorimeter Heat Release Tester Machine for Building Materials 220V 1 Year Warranty

Product Overview

The ISO5660 Cone Calorimeter measures heat release rate by analyzing oxygen concentration in combustion product streams. This critical parameter is essential for predicting fire hazards and developing effective fire retardant treatments.

Key Features

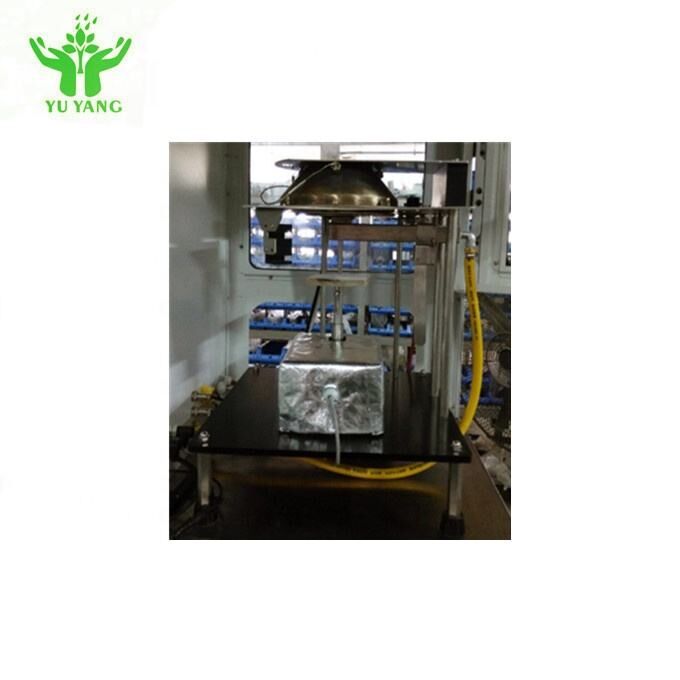

Radiation Cone: 5kW heating power with 100kW/m² radiation intensity, equipped with three thermocouples for temperature measurement
Weighing Equipment: Imported high-precision electronic scales with 500g capacity and 0.01g resolution
Exhaust System: Centrifugal fans, hoods, air intake and exhaust pipes with orifice flowmeter
Gas Sampling Apparatus: Sampling pump, particulate filter, dehumidification cold trap, emptying bypass coefficient, water filters, and CO2 filter
Gas analyzer and key components are imported for superior accuracy

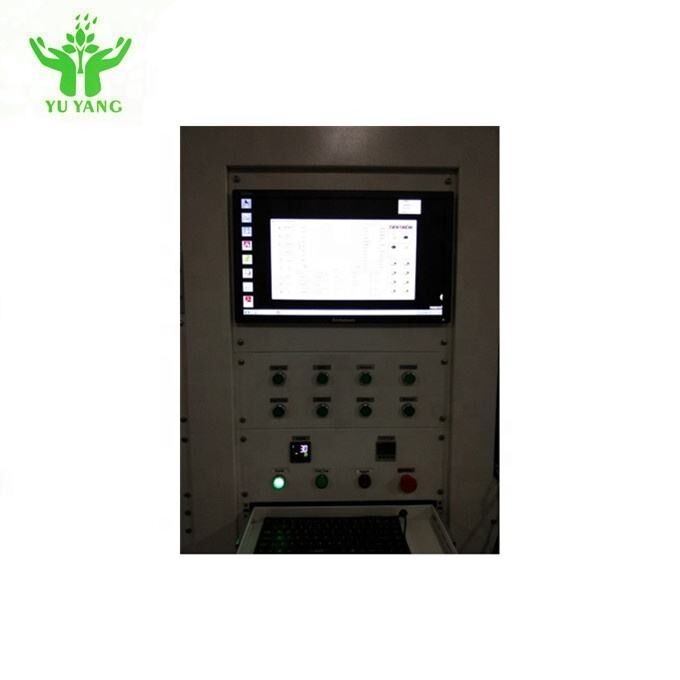

Embedded computer system with 8.4-inch display and TCP/IP and RS-232 communication interfaces

Technical Specifications

Oxygen Measurement

Measuring Range: 0-25%
Signal Output: 4-20mA
Response Time: ≤2S
Ambient Temperature: 0-45℃
Relative Humidity: <90% (non-condensing)
Linearity: <±0.1% O₂
Zero Drift: 0.05% O₂ (one week)
Repeatability: <±0.02% O₂

Carbon Dioxide (CO₂) Measurements

Measuring Range: 0-10%
Repeatability: <±1%
Zero Drift: ≤2%/week
Span Drift: <2%/week
Linearity Deviation: <±1%
Response Time: T90≤2 seconds

Data Acquisition

The system collects and records oxygen concentration, carbon monoxide concentration, temperature, heat release rate, and mass loss rate test data with comprehensive saving capabilities.

Product Details

Item	Value
Warranty	1 year
Certification	CE
Customized Support	OEM, ODM, OBM
Place of Origin	China
Brand Name	YUYANG
Model Number	YY510
Power	Electronic

Product Images
