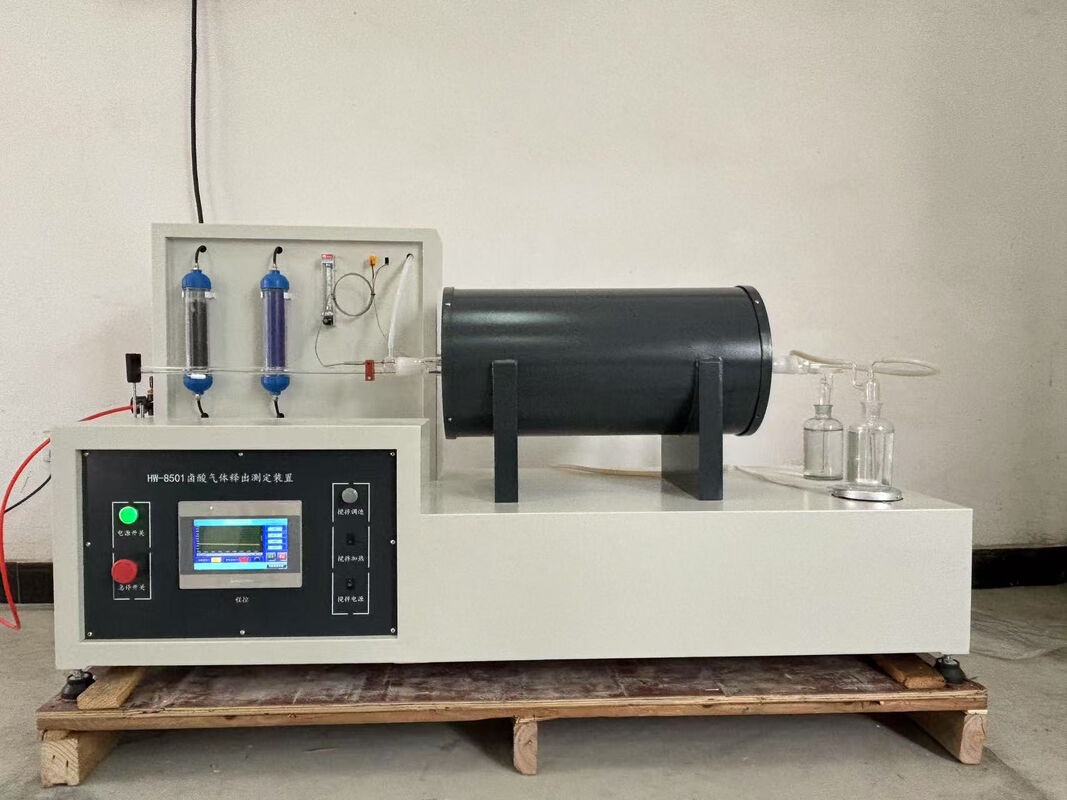

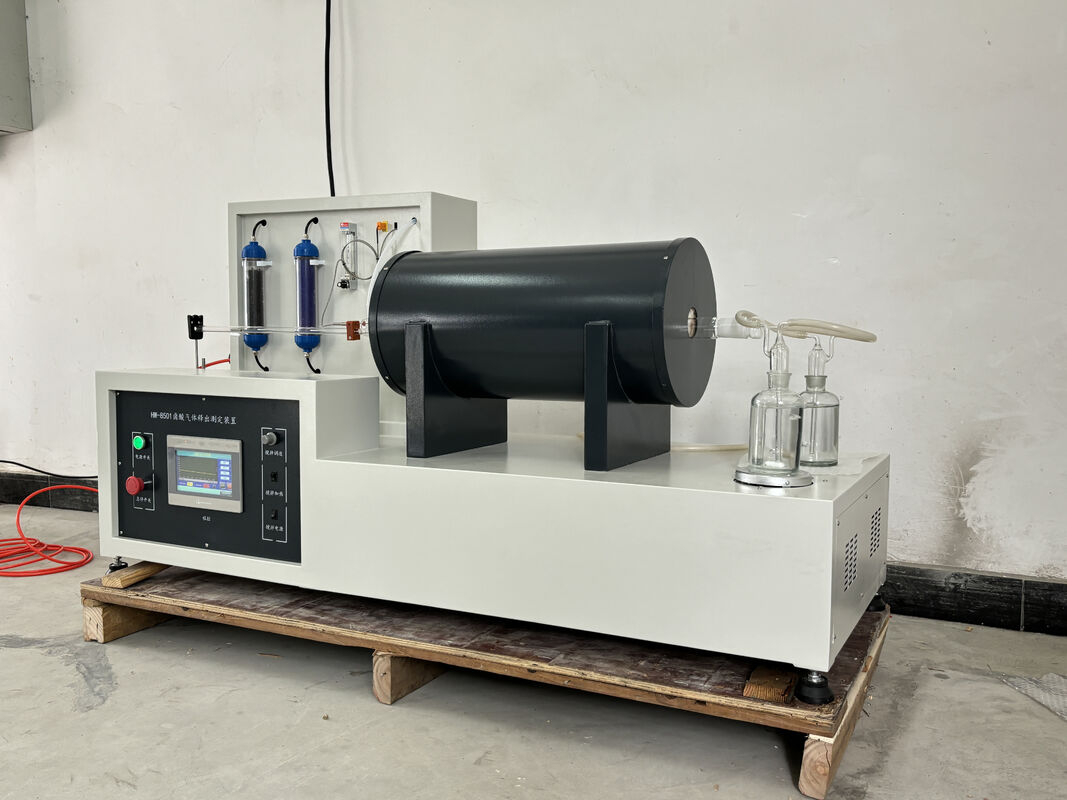

IEC 60754 Halogen Acid Gas Tester for Electric Cables Laboratory Release Test Apparatus

IEC 60754-1 Cable Halogen Acid Gas Release Test Machine is used to test the acidity of gas released during combustion from cable or optical cable components material. The equipment is designed and manufactured based on GB/T 17650 and IEC 60754 standards.

The Halogen Acid Gas Tube Furnace processes cable material through a prius tube furnace, then measures the pH value and conductivity of gases generated during combustion. This determines the cable material's acidity, as well as concentration of halogen acid gas volume, pH, conductivity, and other parameters.

GB/T 17650.1~2-1998, IEC 60754-1/2-1994, EN 50305, BS 6853, GB/T 19666-2005, GA 306.2-2007, UL 2556-2007

• Optimized structure with logical layout for easy operation
• All fixtures made of stainless steel
• Tube furnace effective length: 500-600mm, inner diameter: 40-60mm with adjustable electric systems
• Equipped with imported thermocouple from United States
• Combustion boat size: length 45-100mm, width 12-30mm, depth 5-10mm
• Electrical conductivity measuring range: 0.01μS/mm - 100μS/mm
• Electronic temperature control system with intelligent tube furnace temperature control
• Two gas collection bottles included
• Sample chamber size: 1 liter
• PH value and conductivity detector with electronic display and electrode
• Air flow meter with silicon dioxide fire pipeline to prevent gas corrosion
• Activated carbon air filter for air purification
• Silicone used for drying air source
• Pyrex pipeline for easy sample insertion and pipeline protection
• Automatic combustion boat moving system for intelligent testing
• Mode switching between IEC 60754-1 & IEC 60754-2 test methods
• Temperature alarm system to prevent furnace overheating
• Timer for IEC 60754-1 or IEC 60754-2 time measurement
• Storage drawer for conductivity meters, pH meters, and other components
• Temperature indicator showing furnace core temperature
• Permanent magnetic stirrer for stirring combustion gases in distilled water
• Conductivity meter for measuring combustion gas conductivity
