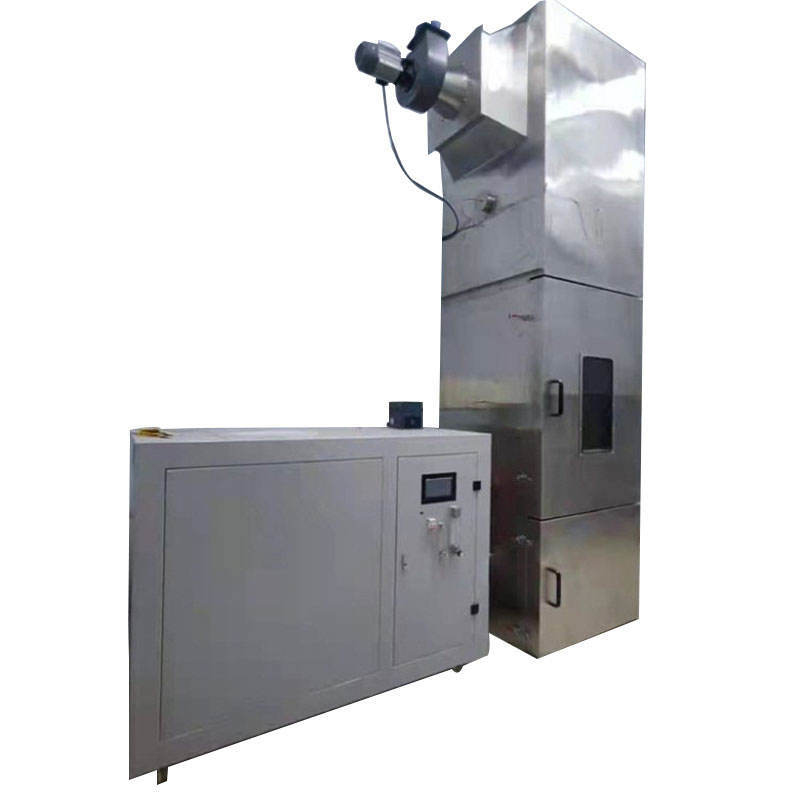

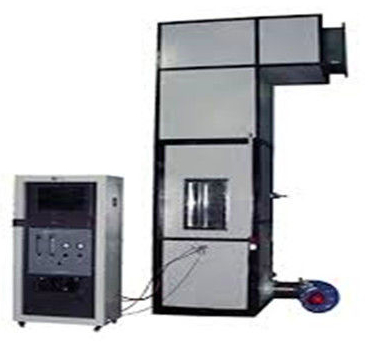

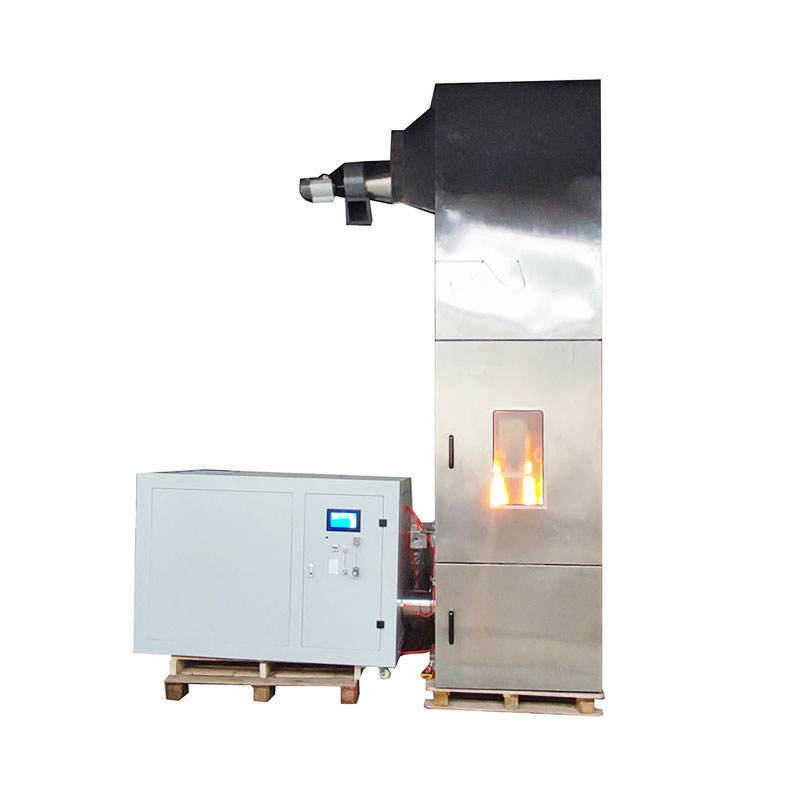

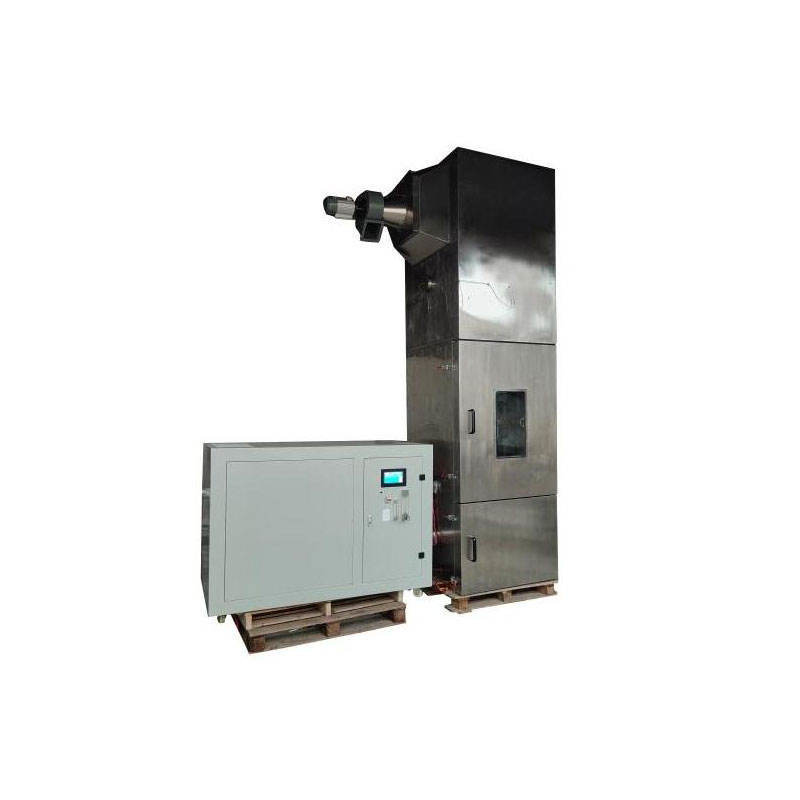

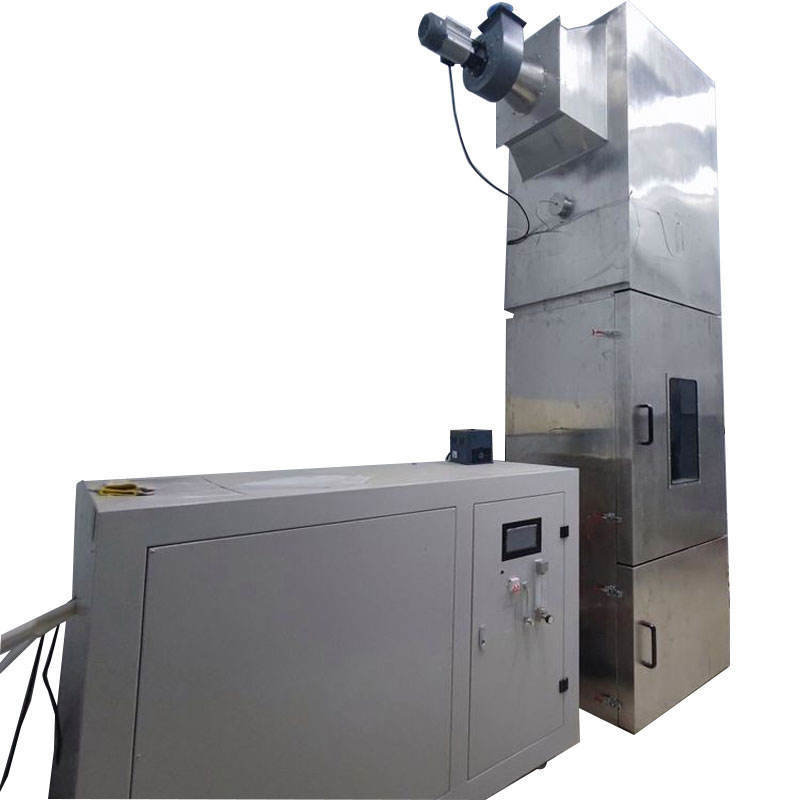

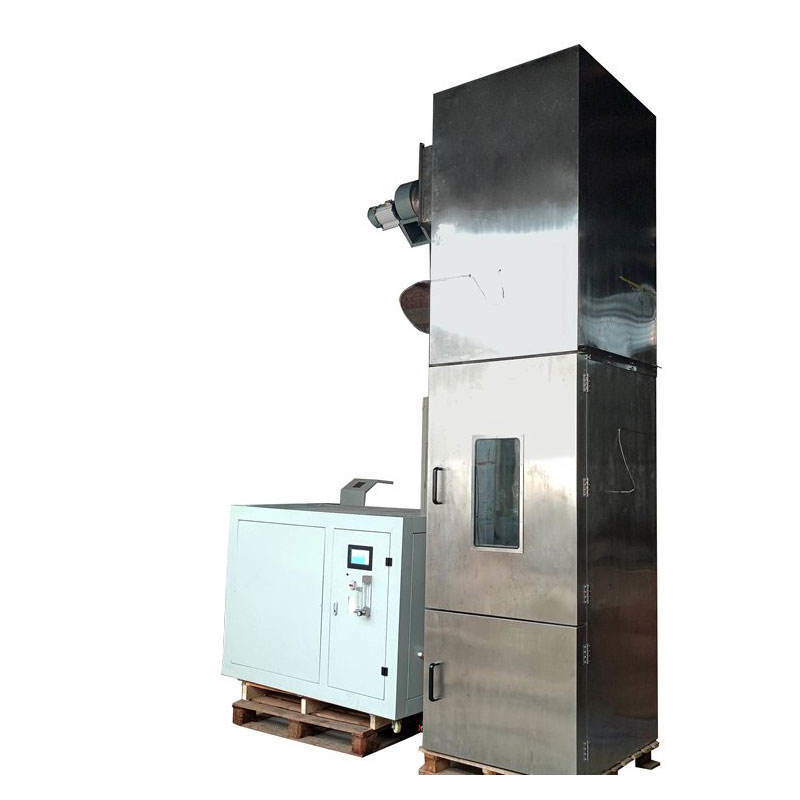

Name: YY-121 Building Materials Difficult Flammability Test Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY121
Price: 25,000.00 USD
Availability: InStock

خونه > محصولات > تجهیزات تست اشتعال پذیری >

YY-121 Building Materials Difficult Flammability Test Equipment

flammability test equipment for building materials,difficult flammability testing equipment,building materials flammability tester

difficult flammability testing equipment

building materials flammability tester

محل منبع:

چین

نام تجاری:

YUYANG

گواهی:

شماره مدل:

YY121

با ما تماس بگیرید

درخواست نقل قول

YY-121 Building Materials Difficult Flammability Test Equipment

جزئیات محصول

جریان سنج:

متان: 5 ~ 45L/دقیقه قابل تنظیم ، هوا: 3 ~ 30 لیتر در دقیقه قابل تنظیم ، سطح دقت: 2.5 درجه

منبع تغذیه:

380 ولت AC 50Hz با استفاده از گاز: متان (خلوص بیش از 95 ٪)

ترموکوپل:

قطر 3.0 میلی متر و ترموکوپل زرهی 1.5 میلی متر

قطر نازل مشعل:

3.5 میلی متر ، ابعاد: 200 x 200 (میلی متر) از پایین 1000 میلی متر

منبع گاز:

> 95 ٪ گاز پروپان ؛ （کاربر باید خود را تأمین کند

فشار:

10kpa ~ 50kpa

برجسته کردن:

flammability test equipment for building materials,difficult flammability testing equipment,building materials flammability tester

difficult flammability testing equipment

building materials flammability tester

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

تنظیم/مجموعه

قیمت

pending

زمان تحویل

شرایط پرداخت

L/C ، T/T

قابلیت ارائه

محصولات مرتبط

Building Materials Ignitability Flammability Tester for Single Flame Source Test

بهترین قیمت رو بدست بیار

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

بهترین قیمت رو بدست بیار

YY-121 Building Materials Difficult Flammability Test Equipment

بهترین قیمت رو بدست بیار

ویدیو

کابینت ایمنی بیولوژیکی کلاس II A2 با عمق 780 میلی متر

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-769-26622869

حالا تماس بگیرید

توضیحات محصول

YY-121 Building Materials Difficult Flammability Test Equipment

The YY-121 Building Materials Difficult Flammability Test Apparatus is designed for flame retardant performance testing of building materials. This computer-controlled equipment offers high automation for accurate fire resistance performance evaluation.

Compliance Standards

GB/T 8625 Test method of difficult-flammability for building materials
DIN 4102-15 Fire behavior of building materials and elements Brandschach

Key Features

Complete burning shaft furnace system including combustion chamber, burner, specimen support, air current stabilizer, and flue
Computer-controlled operation for precise furnace temperature and pressure management
High degree of automation for consistent test results

Working Principle

The testing process begins with four conditioned specimens vertically fixed on the test bracket, forming a vertical square flue. The specimens are positioned at (250±2) mm intervals. A uniform airflow is created in the combustion chamber through a 200mm diameter pipeline, maintaining a constant rate of (10±1) m³/min at controlled temperature.

Gas flow is adjusted to (35±0.5) L/min and air flow to (17.5±0.2) L/min before automatic ignition. The 10-minute test concludes when either the average flue gas temperature exceeds 200°C across five thermocouples or the maximum measured value surpasses 200°C.

Technical Parameters

Parameter	Specification
Power supply	380V AC 50HZ
Gas requirement	Methane (purity > 95%)
Flow meter range	Methane: 5-45L/min, Air: 3-30L/min (2.5 grade precision)
Specimen size	190 x 1000mm (four specimens per test, thickness ≤80mm)
Thermocouple	3.0mm diameter and 1.5mm armored thermocouple
Burner specifications	Nozzle diameter: 3.5mm, dimensions: 200 x 200mm (positioned 1000mm from bottom)
Combustion furnace dimensions	1020 x 1020 x 3930mm (external), 800 x 800 x 2000mm (internal)
Weight	1 ton
