Name: 200KG Touch Screen Single Column Tensile Testing Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY136
Price: 2,502.00 USD
Availability: InStock

خونه > محصولات > تجهیزات تست نساجی >

200KG Touch Screen Single Column Tensile Testing Machine

200kg tensile testing machine,touch screen textile testing equipment,single column tensile strength tester

touch screen textile testing equipment

single column tensile strength tester

محل منبع:

چین

نام تجاری:

YUYANG

گواهی:

شماره مدل:

YY136

با ما تماس بگیرید

درخواست نقل قول

200KG Touch Screen Single Column Tensile Testing Machine

جزئیات محصول

گزینه ظرفیت::

200 کیلوگرم

دقت اندازه گیری::

%1±

وضوح:

1/200000

سرعت تست::

0 ~ 300 میلی متر در دقیقه

سکته مغزی موثر:

600 میلی متر

فضای آزمون::

120 میلی متر

واحد نیرو:

kgf، gf، N، kN، lbf

منبع تغذیه:

pH ، AC220V ، 50/60Hz

نیروی پویا:

موتور تنظیم کننده سرعت

برجسته کردن:

200kg tensile testing machine,touch screen textile testing equipment,single column tensile strength tester

touch screen textile testing equipment

single column tensile strength tester

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

مجموعه / مجموعه

قیمت

Pending

شرایط پرداخت

L/C ، T/T

قابلیت ارائه

محصولات مرتبط

ویدیو

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

بهترین قیمت رو بدست بیار

ویدیو

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

بهترین قیمت رو بدست بیار

ویدیو

Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products

بهترین قیمت رو بدست بیار

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-769-26622869

حالا تماس بگیرید

توضیحات محصول

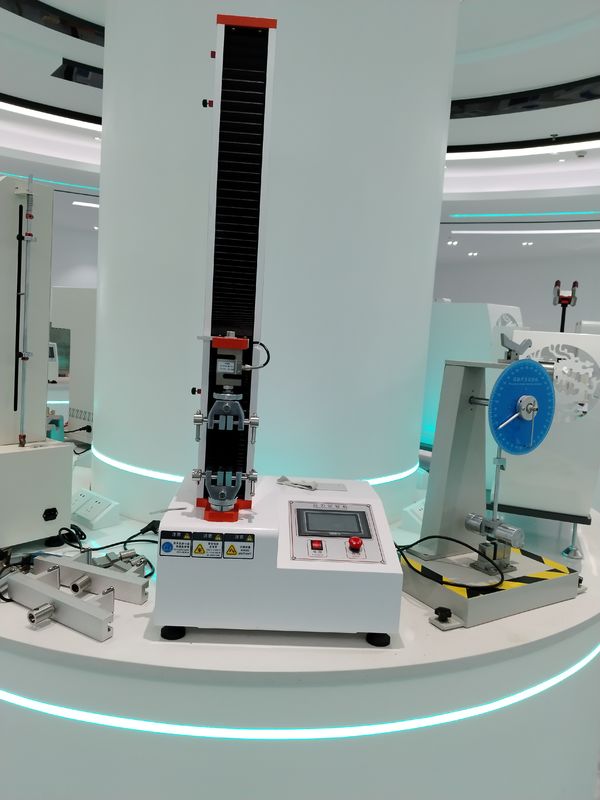

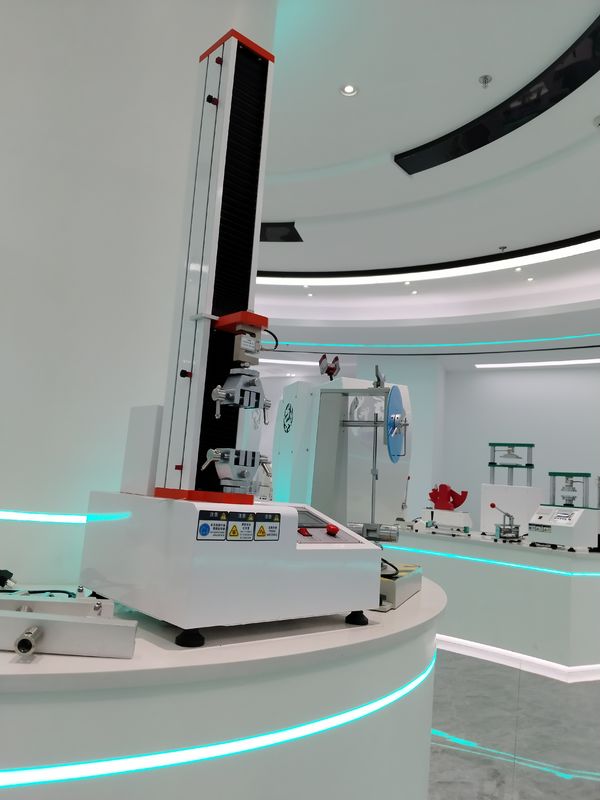

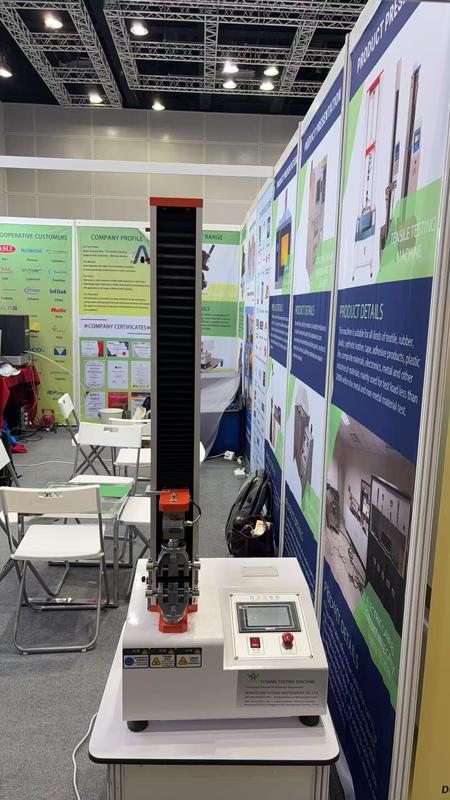

200KG Touch Screen Single Column Tensile Testing Machine

Technical Specifications

Attribute	Value
Capacity Option:	200kg
Measurement Accuracy:	±1 %
Resolution	1/200000
Test Speed:	0 ~ 300 mm/min
Effective Stroke	600 mm
Test Space:	120 mm
Force Unit	kgf, gf, N, kN, lbf
Power Source	PH, AC220V, 50/60Hz
Dynamic Force	speed regulating motor

Product Overview

The Touch Screen Single Column Tensile Testing Machine is designed for evaluating material properties under static load conditions, including tensile, compression, bending, peel, and pulling tests.

Applications

Widely used for testing plastic plates, pipes, rubber, wire and cable materials
Essential for physical properties testing, teaching, research, and quality control
Suitable for testing tensile strength, peeling strength, deformation rate, breaking force, and other performance metrics
Ideal for plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, and paper fiber products

Industry Applications

This testing machine serves multiple industries including tape manufacturing, automotive, ceramics, composites, construction, food processing, medical equipment, metalworking, paper production, packaging, rubber processing, textiles, woodworking, communications, and various specialized materials.

Compliance Standards

Meets ASTM D903, F2258, GB/T 2790/2791/2792, CNS-11888, JIS K6854, GB/T 6329, BS EN 14410-2003, YY/T 0729, GOST 21751 and other relevant standards.

Product Images
