Name: 5kn High Stroke Floor Universal Tensile Testing Machine for Rubber Plastics Wire Cable Textile
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: yy276
Price: 2,502.00 USD
Availability: InStock

خونه > محصولات > تجهیزات تست نساجی >

5kn High Stroke Floor Universal Tensile Testing Machine for Rubber Plastics Wire Cable Textile

5kn tensile testing machine for rubber,universal tensile tester for plastics,high stroke textile testing equipment

universal tensile tester for plastics

high stroke textile testing equipment

محل منبع:

چین

نام تجاری:

YUYANG

گواهی:

شماره مدل:

yy276

با ما تماس بگیرید

درخواست نقل قول

5kn High Stroke Floor Universal Tensile Testing Machine for Rubber Plastics Wire Cable Textile

جزئیات محصول

ظرفیت:

500 کیلوگرم (5KN)

اندازه گیری نیروی:

در 0.5 ± از مقدار نمایش داده شده

روش نمایش:

صفحه لمسی

واحد:

kg 、 lb 、 n

فراوانی نمونه گیری داده ها:

200 بار در ثانیه

عرض تست موثر:

150 میلی متر

کشش موثر از:

1200 میلی متر

برجسته کردن:

5kn tensile testing machine for rubber,universal tensile tester for plastics,high stroke textile testing equipment

universal tensile tester for plastics

high stroke textile testing equipment

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

مجموعه / مجموعه

قیمت

pending

زمان تحویل

شرایط پرداخت

L/C ، T/T

محصولات مرتبط

ویدیو

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

بهترین قیمت رو بدست بیار

ویدیو

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

بهترین قیمت رو بدست بیار

ویدیو

Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products

بهترین قیمت رو بدست بیار

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-769-26622869

حالا تماس بگیرید

توضیحات محصول

5kN High Stroke Floor Universal Tensile Testing Machine for Rubber Plastics Wire Cable Textile

Product Specifications

Attribute	Value
Capacity	500kg(5kN)
Force measurement	Within ±0.5% of the displayed value
Display method	Touch Screen
Unit	Kg, lb, N
Data sampling frequency	200times/sec
Effective test width	150mm
Effective stretching	1200mm

Product Description

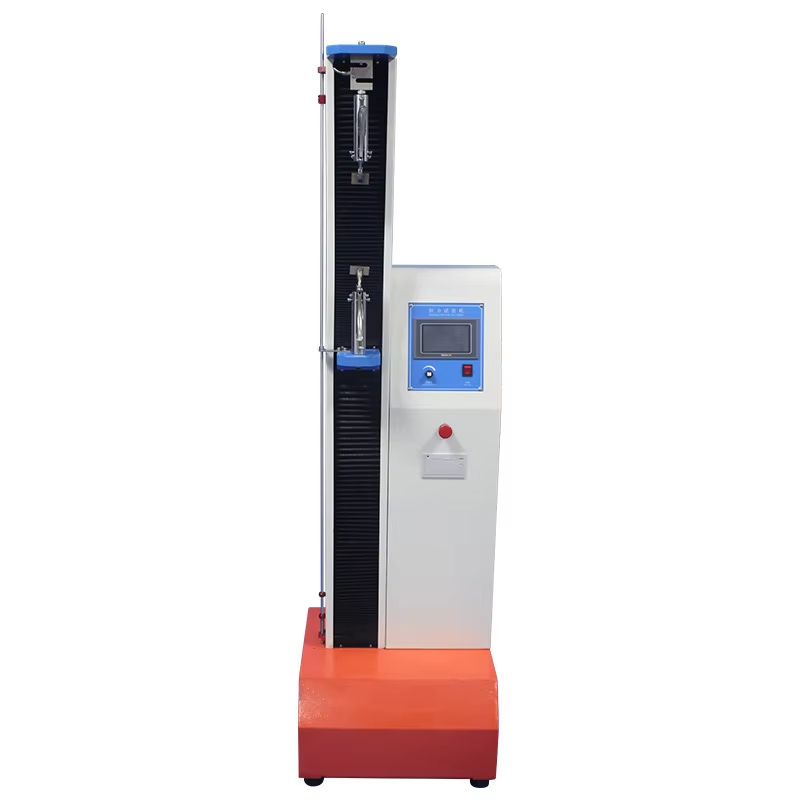

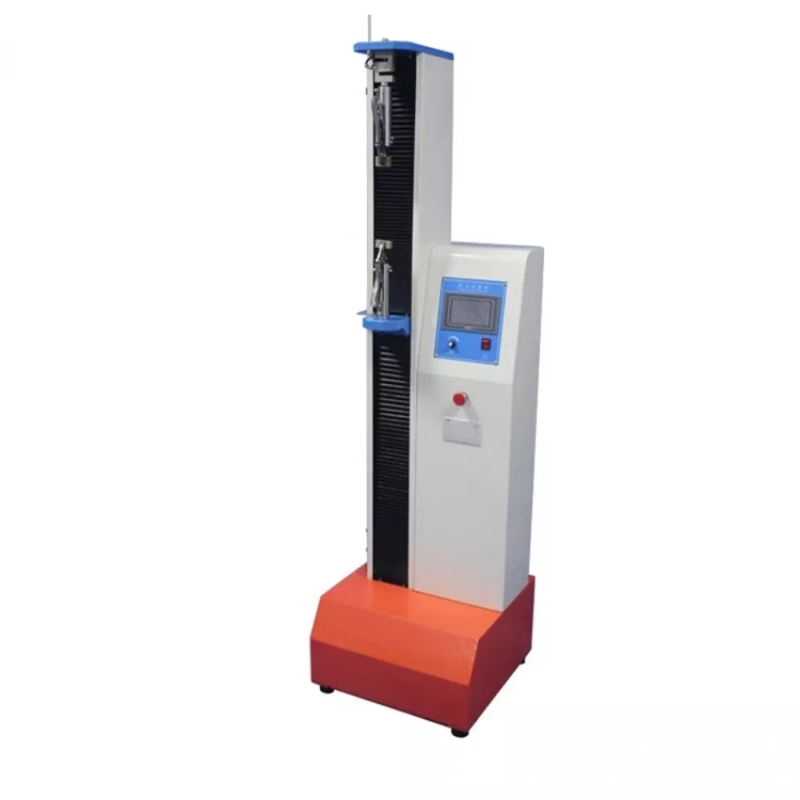

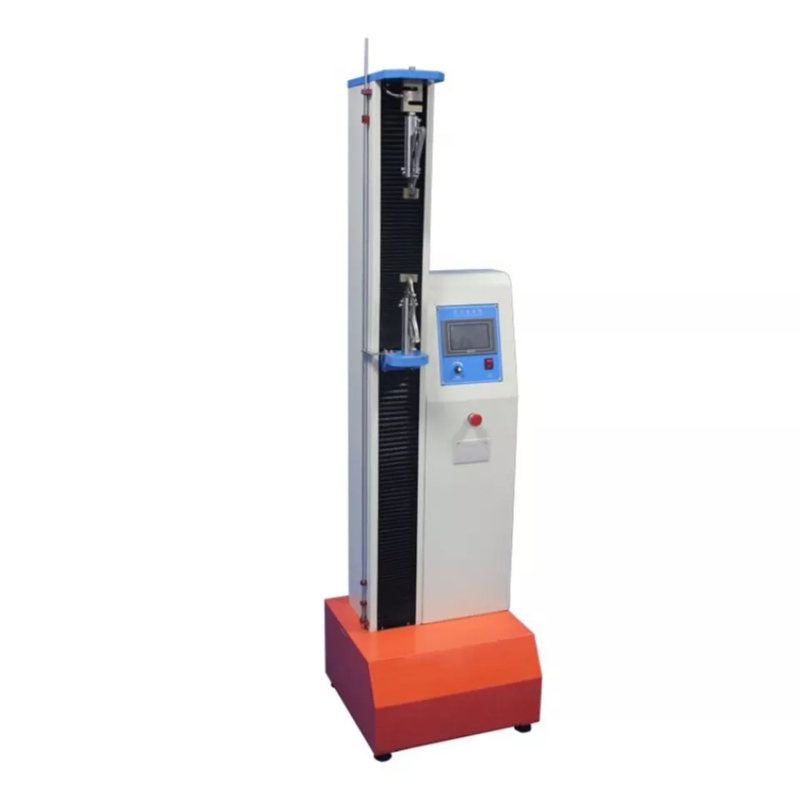

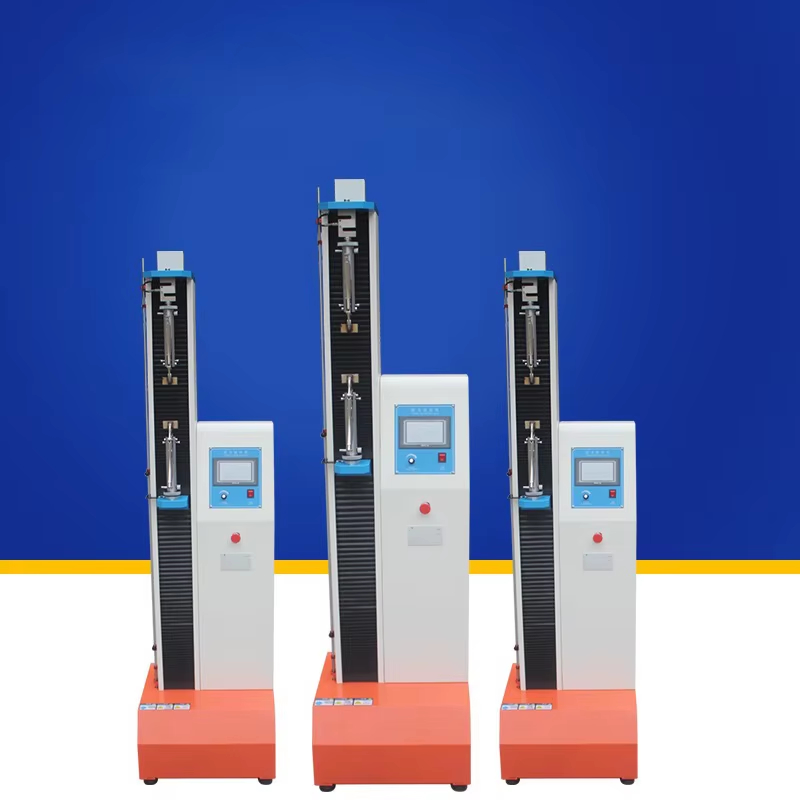

5kN Single Column Tensile Testing Machine

Description of Electronic Tensile Testing Machine

Computer display electronic universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling, tearing and other mechanical properties.

This type is mainly for the tensile strength testing of insulator.

Features

A testing machine integrates various independent testing functions such as tension, compression, bending, tearing, and peeling, providing a variety of test items for users to choose
The equipment adopts miniaturization and structural integration design to meet the test requirements for various occasions
Tensile strength function, stable loading, good performance at low speed, no gap, high transmission efficiency, low noise, stable transmission

Testing Standard: GB/T16491-1996

Technical Parameters

Capacity	500kg(5kN)
Force measurement accuracy	Within ±0.5% of the displayed value
Display method	Touch Screen
Unit	Kg, lb, N
Data sampling frequency	200times/sec
Test machine resolution	Maximum load of 1/±25,000 yards, inside and outside without splitting, and constant resolution throughout
Load sensors	Basic configuration: pull and pressure sensors (maximum load)
Effective test width	150mm
Effective stretching of space	1200mm
Testing speed range	1-100mm/min stepless speed control and 5-speed fixed (special test speed can be customized according to customer requirements)
Displacement measurement accuracy	Within ±0.5% of the displayed value
Breakpoint ratio setting	0～99%, Users can set the appropriate breakage stop time according to different materials
Test bench safety device	Up and down travel limiter
Overload protection	Automatically protected when the maximum load is exceeded by 10%
Clamp	One set
Dimension	550×400×1820mm
Main machine weight	About 100 Kgs
Power supply	220V/50Hz
Compatible Software	Can provided according customers payment
Installation Instruction	Videos provided
Connect way	USB data cable connection
