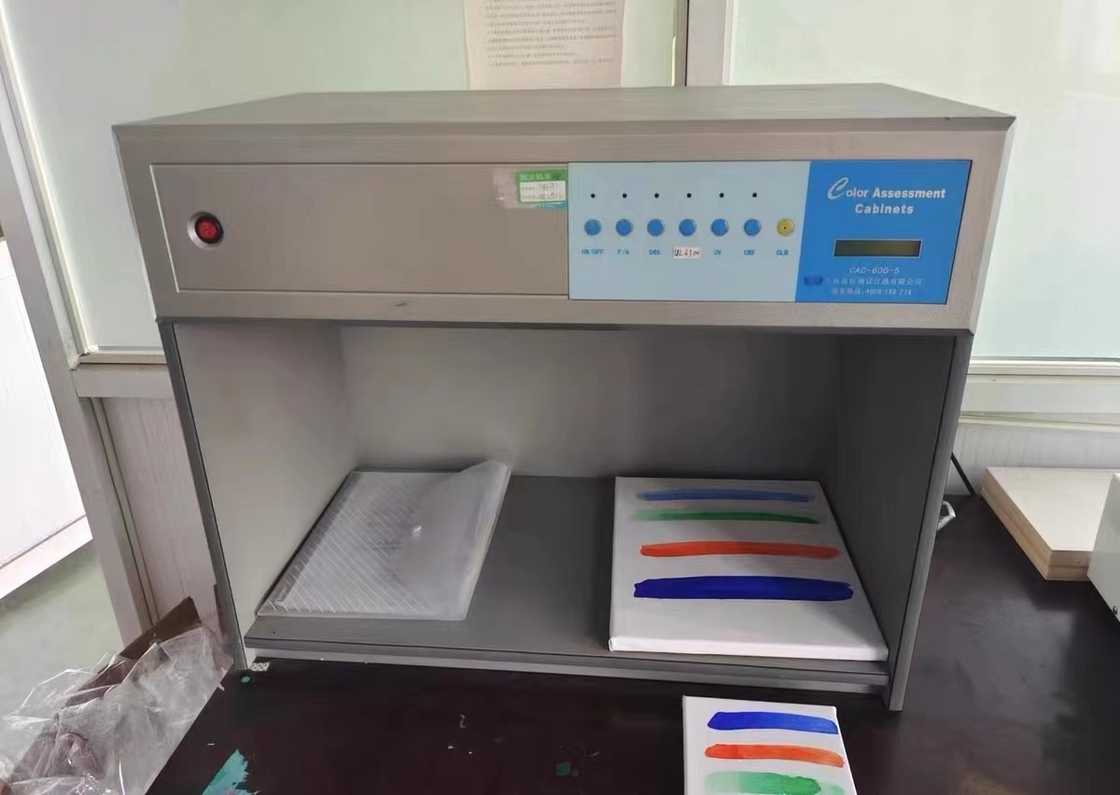

Name: Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY816
Price: 2,502.00 USD
Availability: InStock

خونه > محصولات > تجهیزات تست نساجی >

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

fabric color assessment cabinet,textile inspection light box,color matching chamber for textiles

textile inspection light box

color matching chamber for textiles

محل منبع:

چین

نام تجاری:

YUYANG

گواهی:

شماره مدل:

YY816

با ما تماس بگیرید

درخواست نقل قول

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

جزئیات محصول

نام محصول:

کابینت ارزیابی رنگ

منبع تغذیه:

220V ، 380V ، 240V ، 110V

دقت:

0.1k

بعد:

72 * 53 * 56 سانتی متر

وزن:

30 کیلوگرم

رنگ داخلی:

مونسل گری

استاندارد:

ASTM D1729 ، BS 950 PART1 ، DIN 6173

استفاده کردن:

بافت ، چرم ، گیاه شیمیایی ، چاپ و غیره

ضمانت:

1 سال

برجسته کردن:

fabric color assessment cabinet,textile inspection light box,color matching chamber for textiles

textile inspection light box

color matching chamber for textiles

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

مجموعه / مجموعه

قیمت

pending

زمان تحویل

شرایط پرداخت

L/C ، T/T

قابلیت ارائه

محصولات مرتبط

ویدیو

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

بهترین قیمت رو بدست بیار

ویدیو

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

بهترین قیمت رو بدست بیار

ویدیو

Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products

بهترین قیمت رو بدست بیار

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-769-26622869

حالا تماس بگیرید

توضیحات محصول

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

Product Specifications

Attribute	Value
Product name	Color Assessment Cabinet
Power supply	220V, 380V, 240V, 110V
Accuracy	0.1K
Dimension	72 * 53 * 56 cm
Weight	30kg
Interior color	Munsell gray
Standard	ASTM D1729, BS 950 PART1, DIN 6173
Use	Textile, leather, chemical plant, printing etc
Warranty	1 year

Product Description

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

Application

The standard light source testing cases have been widely used in spinning, printing and dyeing, leather, shoe materials, plastic cement, hardware, oil paint, printing ink, packaging, printing, electrical appliance, color materials, spray finishing, chemical engineering, cosmetics and the color management fields in various industries.

Main Functions

Separately records the use time of each light source to accurately control the best service life of the light source to avoid detection errors caused by excessive aging of the light tube.
The light source can be automatically switched and has the function of metamerism.
The instrument does not need to be warmed up and will not flicker.
Equipped with a complete set of common light sources for British and American standards to ensure fast and reliable color evaluation.
The name of the light source can be changed, making it more convenient to replace the light source.

Technical Specifications

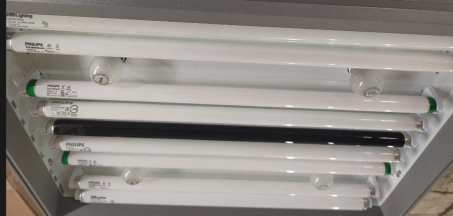

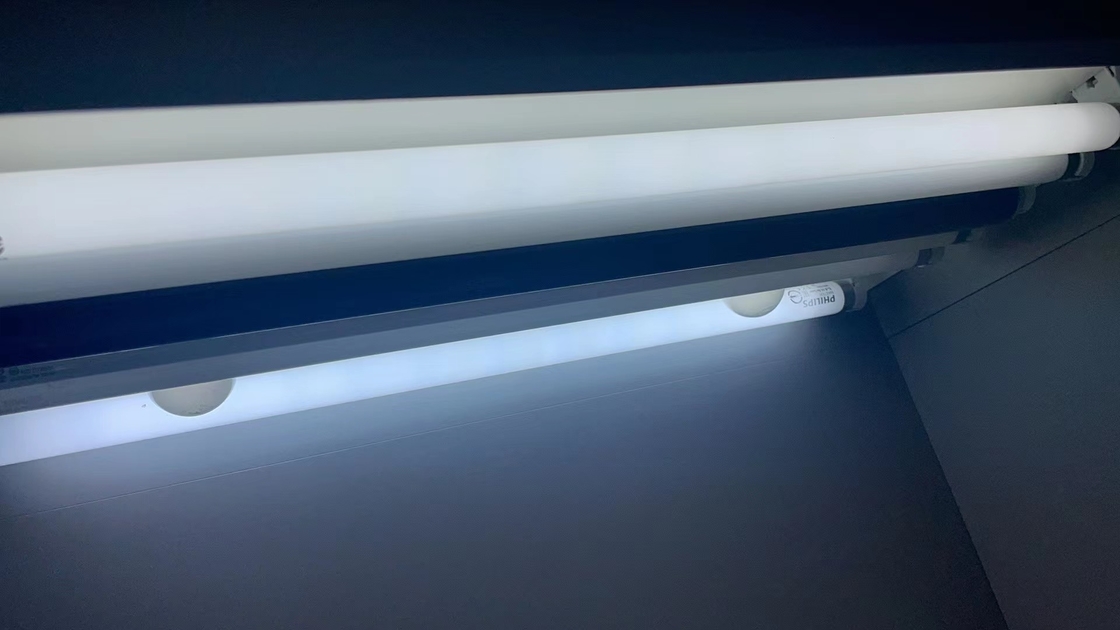

Light Source	Color Temperature	Lamp Watt	Specification	Application
D65	6500K	2pcs*18W	18W/965	International Standard Artificial Daylight
TL84	4000K	2pcs*18W	18W/840	European, Japan Shop light Source
CWF	4200K	2pcs*18W	18W/33 COOL WHITE	Cool white Fluorescent/USA Shop Source
F/A	2700K	4pcs*40W	E27 40W	Sun-setting Light Yellow Light Source
UV	/	1pcs*20W	20W BLB BLACK LIGHT	Ultraviolet Lamp

D65: Uses the artificial fluorescent lamp D65 recognized by the international institute of illumination (CIE) as the basic lighting source. In addition to being used for contrasting colors, D65 is also defined as the lighting source for gray scale contrast by people in the world.

UV: Ultraviolet light source. Because fluorescent and brightening dyes are commonly used in industrial production, the best way to detect its effects is to use ultraviolet light, because ultraviolet light is shining on a material that has been stained with fluorescent, which can be easily detected by the naked eye.

F/A: Filament Lighting is suitable for the observation of colors under the light source in the home or hotel room such as the color management of underwear, bedroom supplies and other products.

CWF/TL84: Some customers require to use this light source for color matching. For example American merchants often require the use of Cool White Fluorescent (CWF) light source or U30 light source, and European and Japanese merchant associations require the use of Triphosphor Lamp P15 (TL84) light source.

Inner size: 675*380*360mm

Machine size: 710*420*570mm 32kg

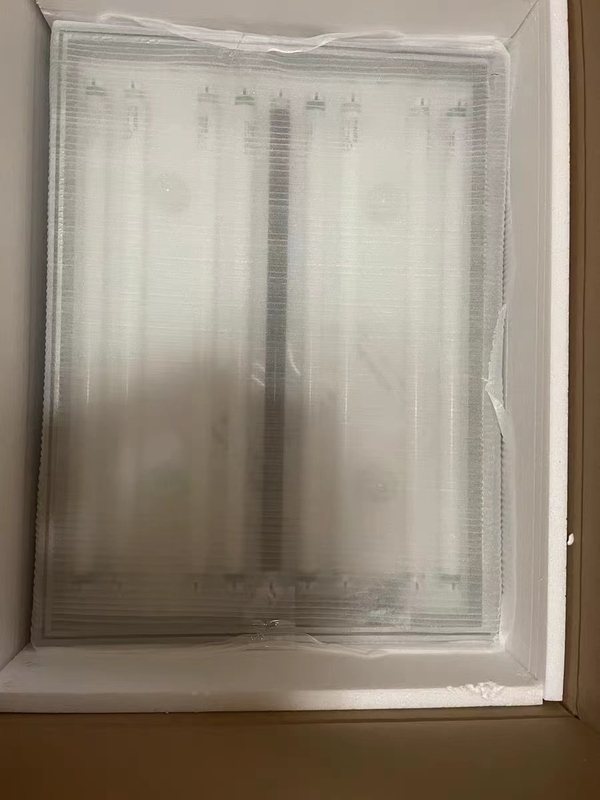

Package size: 800*500*650mm 40kg
