Name: DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYW006
Price: 2,502.00 USD
Availability: InStock

خونه > محصولات > تجهیزات تست نساجی >

DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results

DIN abrasion test machine for textiles,ISO 4649 compliant textile tester,textile abrasion testing instrument

ISO 4649 compliant textile tester

textile abrasion testing instrument

محل منبع:

چین

نام تجاری:

YUYANG

گواهی:

شماره مدل:

YYW006

با ما تماس بگیرید

درخواست نقل قول

DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results

جزئیات محصول

بارگذاری کنید:

0.1 ± 2.5 ؛ 0.1 ± 5 ؛ 0.2 ± 10.0

اندازه نمونه:

قطر 16 میلی متر ، ضخامت 6-16 میلی متر

قطر درام چرخان:

150 میلی متر

سرعت طبل چرخش:

40 ± 1 RPM

مشخصات پارچه سنباده:

60 #، 1.5 ± 473 425 (میلی متر)

طول آزمایش:

40 متر (حدود 84 چرخش)

جابجایی افقی:

4.2 میلی متر / چرخش

وزن بازوی آزمایشی:

5 ± 250 (گرم)

پیچ:

6 دندان در اینچ

چرخش محدود:

85 چرخش

برجسته کردن:

DIN abrasion test machine for textiles,ISO 4649 compliant textile tester,textile abrasion testing instrument

ISO 4649 compliant textile tester

textile abrasion testing instrument

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

مجموعه / مجموعه

قیمت

pending

جزئیات بسته بندی

85x32x40 سانتی متر

زمان تحویل

شرایط پرداخت

L/C، D/A، T/T

قابلیت ارائه

محصولات مرتبط

ویدیو

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

بهترین قیمت رو بدست بیار

ویدیو

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

بهترین قیمت رو بدست بیار

ویدیو

Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products

بهترین قیمت رو بدست بیار

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-769-26622869

حالا تماس بگیرید

توضیحات محصول

DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results

Product Specifications

Attribute	Value
Load	2.5±0.1N; 5±0.1N; 10.0±0.2N
Specimen Size	Diameter 16mm, thickness 6-16mm
Rotating Drum Diameter	150mm
Rotating Drum Speed	40 ±1RPM
Emery Cloth Specification	60 #, 425 ±473 ±1.5 (mm)
Testing Length	40M (about 84 rotations)
Horizontal Displacement	4.2mm / rotation
Test-Arm Weight	250 ± 5 (g)
Shift Screw	6 teeth / inch
Limit Rotation	85 rotations

Product Overview

DIN Abrasion Test Machine ISO 4649 & ASTM D5963 Compliant Textile Testing Instrument for Counting Results

Product Description

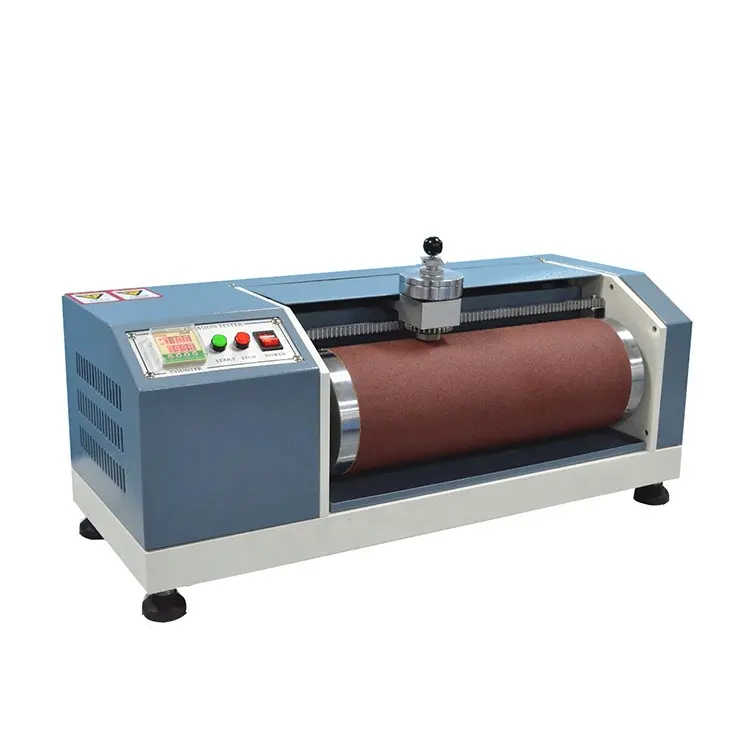

DIN Abrasion Test Machine For Rubber Plastic Leather is designed to test surface friction using a specific piece of sandpaper. After friction testing for a predetermined time, the condition of the material surface, weight, volume, and thickness are assessed to determine the abrasive nature of materials.

Testing Principle

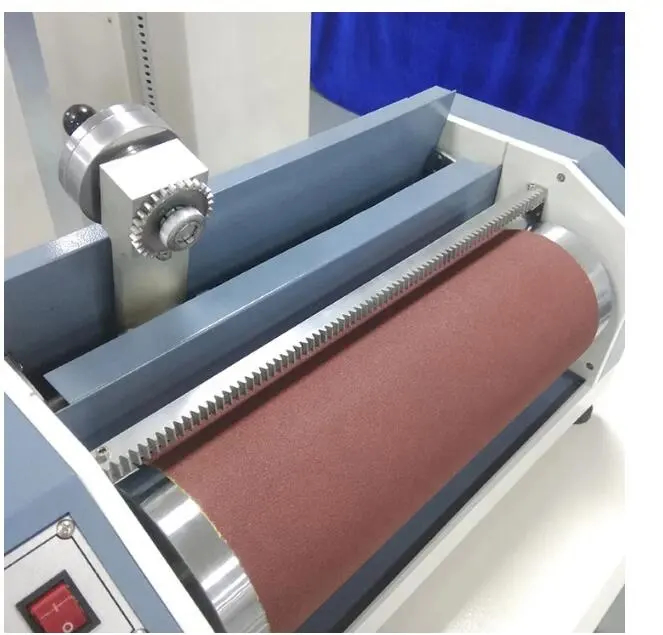

Under predetermined contact pressure and given area, the specimen is tested with sandpaper at an angle to measure abrasion resistance. The sandpaper is affixed to the surface of the drum, and samples are pressed against the drum. The specimen moves laterally along the roller, producing abrasion resistance at one end. The test measures mass loss of the specimen, with volume abrasion calculated using the specimen's density.

Compliant Standards:

DIN ISO 4649:2006-11 (E) - Rubber, vulcanized or thermoplastic - Determination of abrasion resistance using a rotating cylindrical drum device
ASTM D5963 - 04(2010)e1 Standard Test Method for Rubber Property--Abrasion Resistance (Rotary Drum Abrader)
